Instrument Panel Vents Removal

  1. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Removal  .
  2. Pry off the vents by inserting a screwdriver.

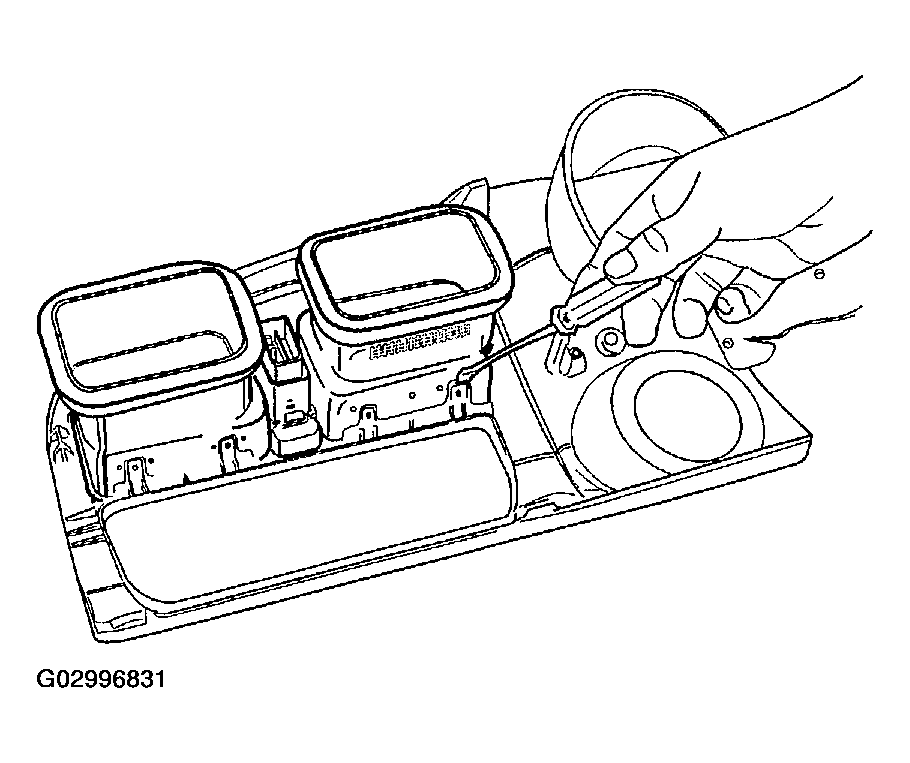

Fig 1: Prying Off Vents By Inserting Screwdriver
G02996831Courtesy of SUZUKI OF AMERICA CORP.
