Instrument Cluster Trim Panel Removal

  1. Remove the audio system trim plate.
  2. Remove the screws and the instrument cluster trim panel.
  3. Disconnect the electrical connectors.

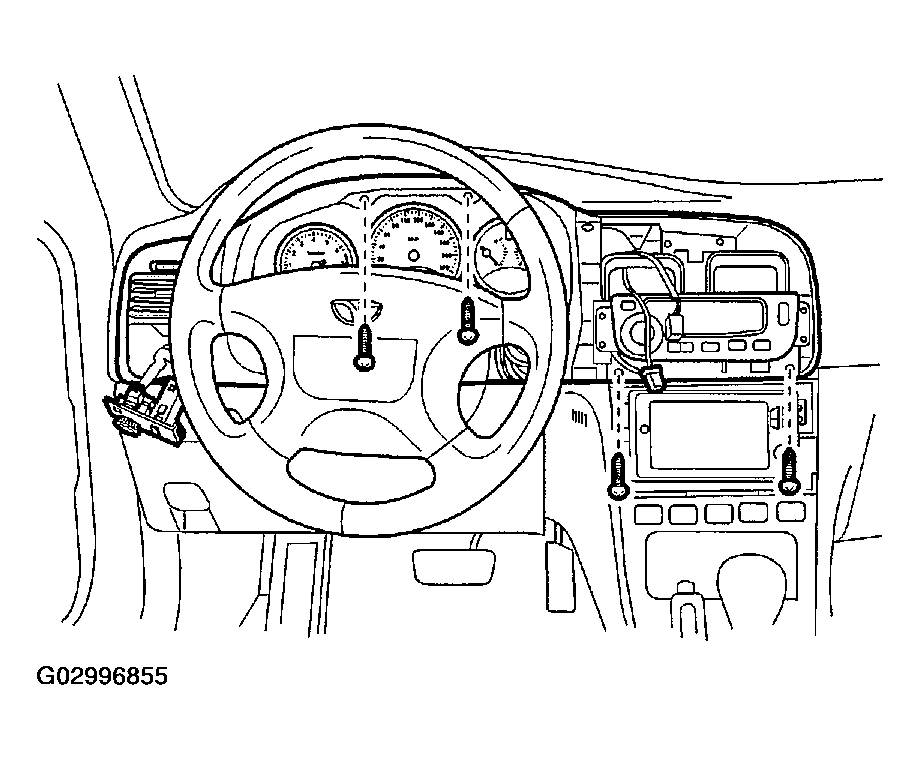

Fig 1: Removing Audio System Trim Plate
G02996855Courtesy of SUZUKI OF AMERICA CORP.
