Instrument Panel Vents Installation

  1. Press the vents onto the housing.
    1. Tighten the instrument panel vent screws to 3 N.m (27 lb-in).
  2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation  .

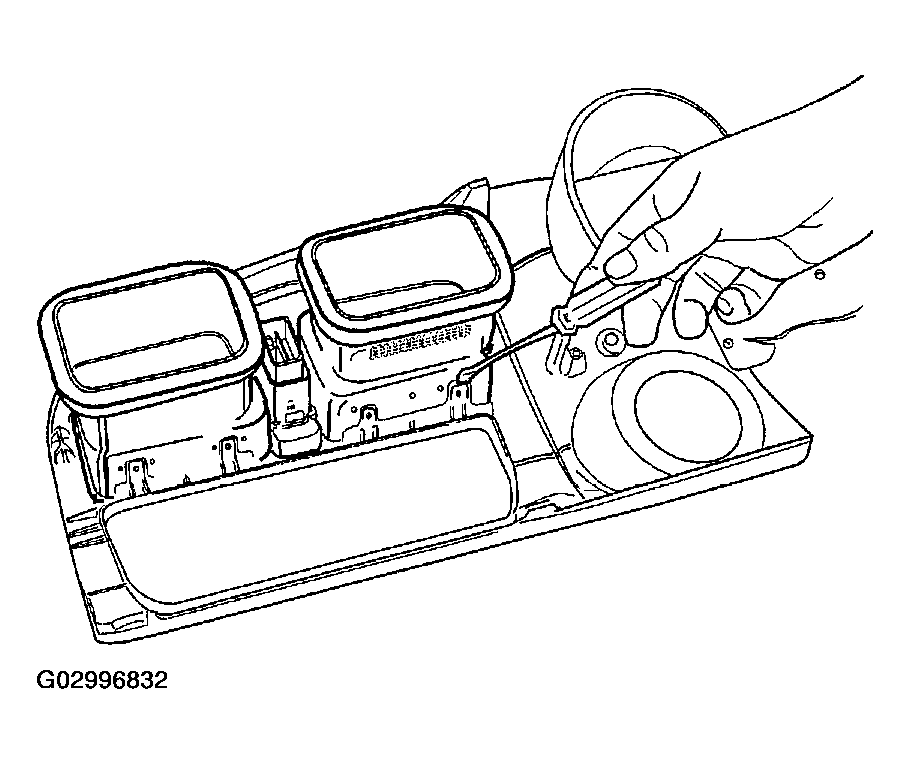

Fig 1: Installing Instrument Cluster Trim Panel
G02996832Courtesy of SUZUKI OF AMERICA CORP.
