Fuel and Temperature Gauge Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. Refer to Instrument Cluster Removal  .
  3. Press the clips down and remove the instrument cluster lens.

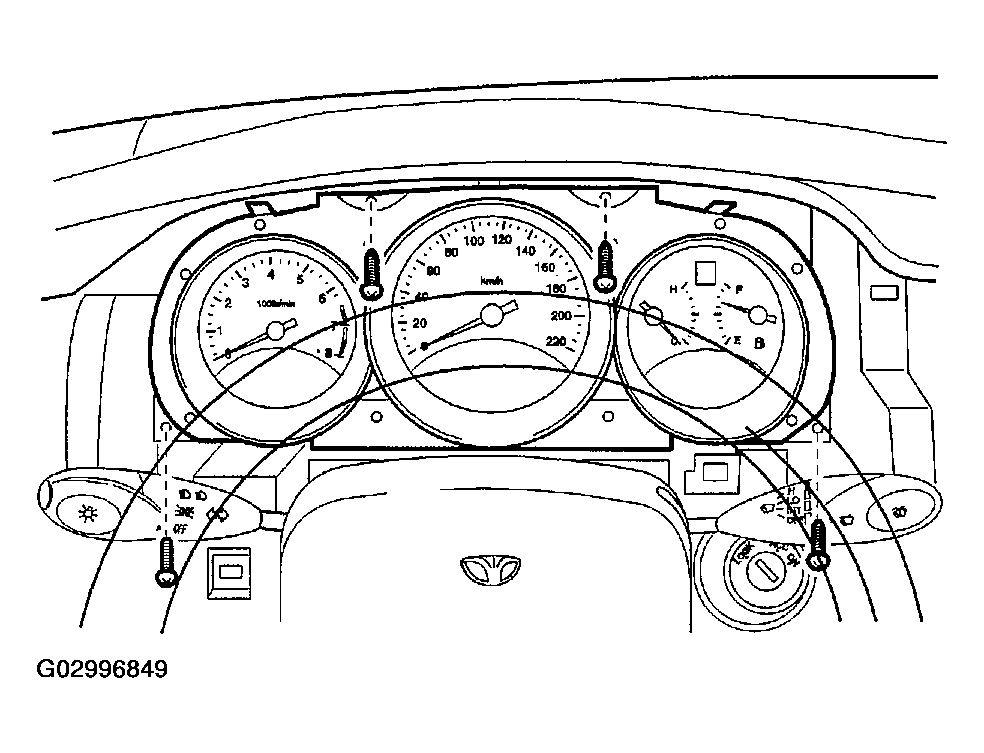

    Fig 1: Removing Instrument Cluster Lens
    G02996849Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the fuel and the temperature gauge from the cluster assembly.

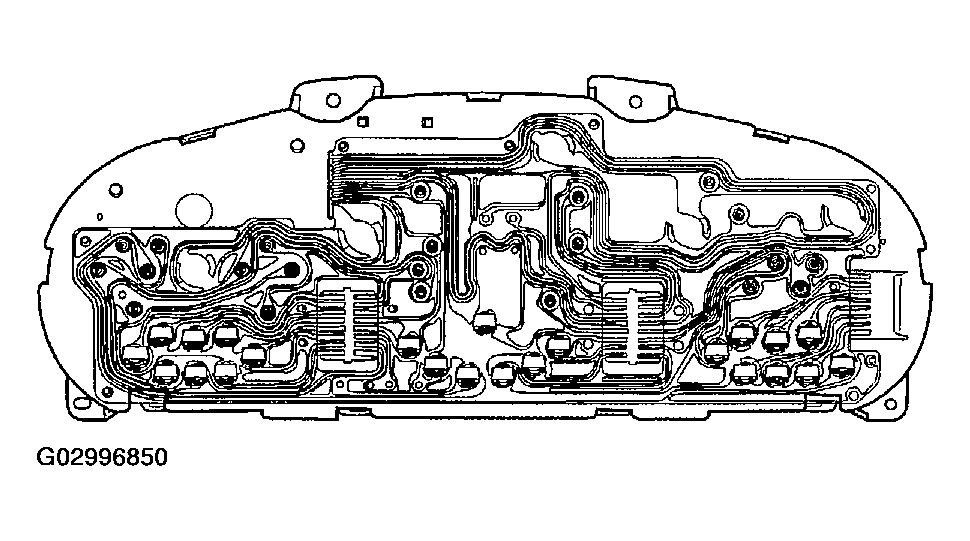

Fig 2: Removing Fuel & Temperature Gauge
G02996850Courtesy of SUZUKI OF AMERICA CORP.
