Digital Clock Removal

  1. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Removal  .
  2. Remove the screws and the digital clock.

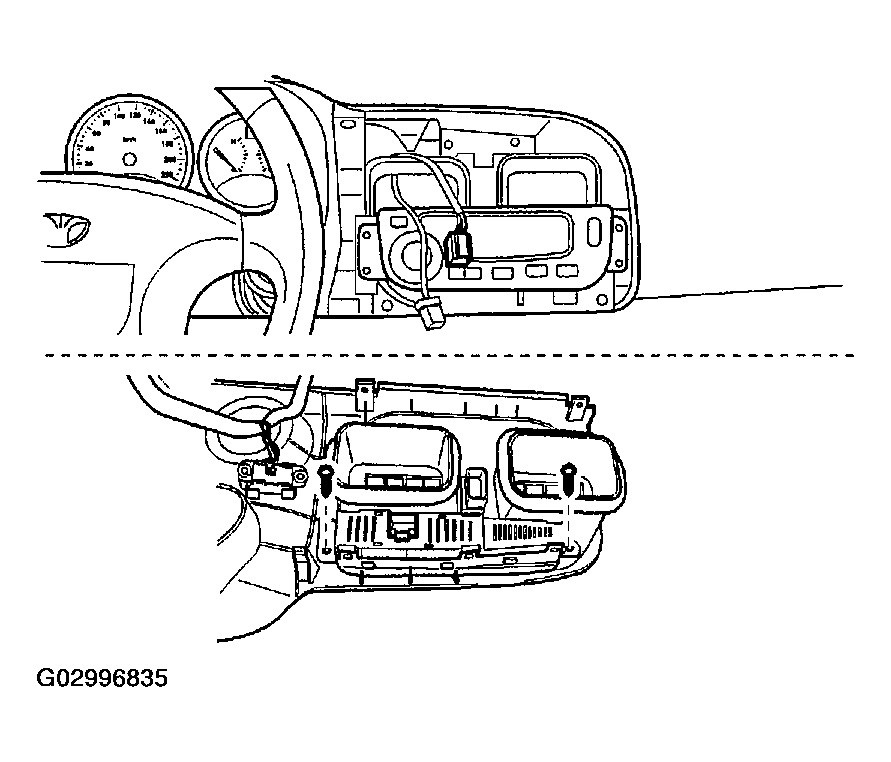

Fig 1: Removing Screws & Digital Clock
G02996835Courtesy of SUZUKI OF AMERICA CORP.
