Wheel Cylinder Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform Steps 1) to 5) of Removal  in "Rear Brake Drum Removal and Installation:".
  2. Perform Steps 2) and 4) of Removal  in "Rear Brake Shoe Removal and Installation:".
  3. Loosen brake pipe flare nut (or nuts) but only within the extent that fluid does not leak.
  4. Remove wheel cylinder mounting bolts. Disconnect brake pipe (or pipes) from wheel cylinder and put wheel cylinder bleeder plug cap (1) onto pipe to prevent fluid from spilling.

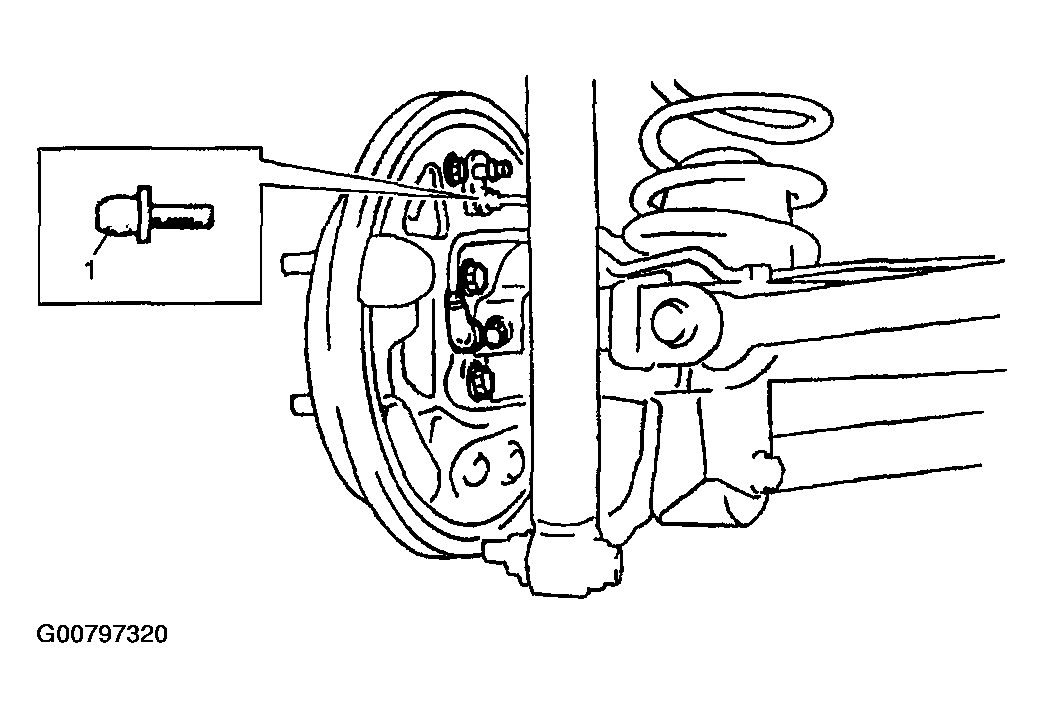

Fig 1: Disconnecting Brake Pipe From Wheel Cylinder
G00797320Courtesy of SUZUKI OF AMERICA CORP.
