Rear Brake Drum Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hoist vehicle and pull up parking brake lever.
  2. Remove wheel.
  3. Release parking brake lever.
  4. Remove parking brake lever cover screws and with rear part of brake lever cover (1) lifted a little, loosen parking brake cable locking nut(2).

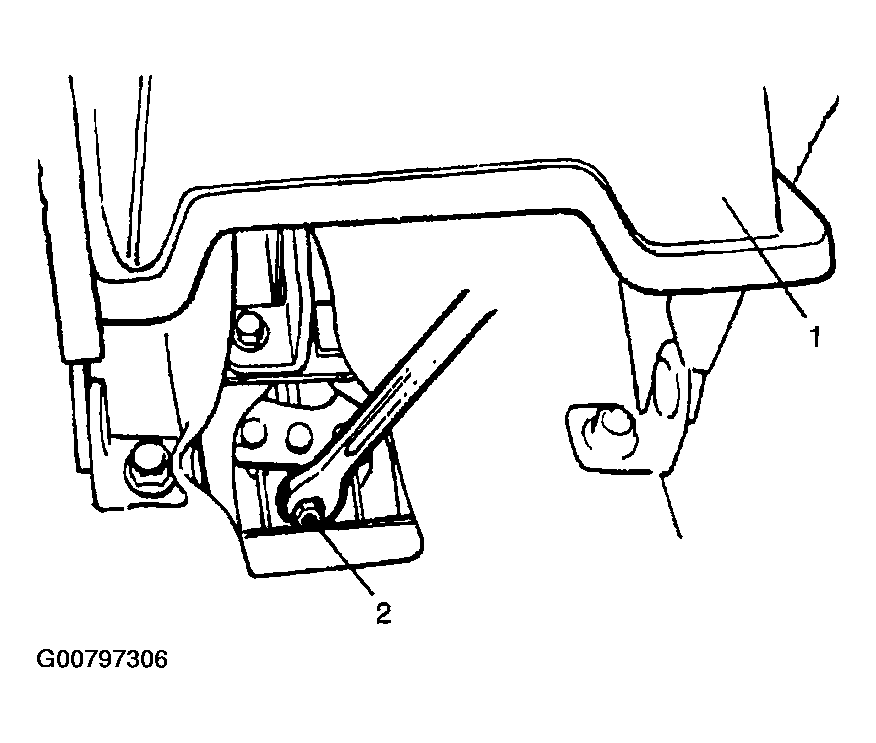

    Fig 1: Removing Parking Brake Lever Cover Screws
    G00797306Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove brake drum (1) by using 8 mm bolts (2) (2 pcs).
    Fig 2: Removing Brake Drum Using Bolts
    G00797307Courtesy of SUZUKI OF AMERICA CORP.
