Engine Symptom Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Perform troubleshooting referring to the following table when ECM (PCM) has detected no DTC and no abnormality has been found in "VISUAL INSPECTION: ".

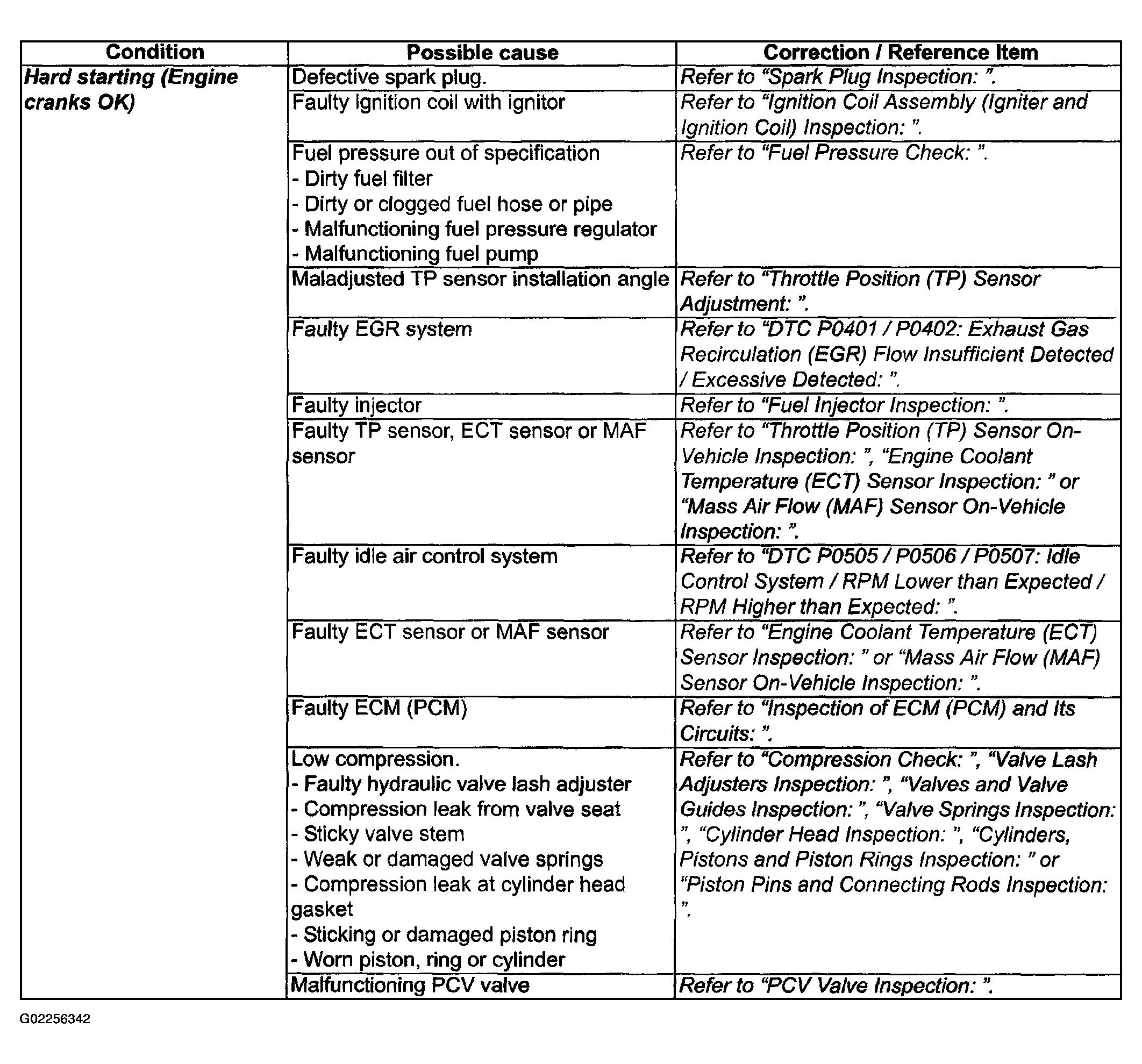

Fig 1: Engine Symptom Troubleshooting Chart (1 Of 5)

G02256342

Courtesy of SUZUKI OF AMERICA CORP.

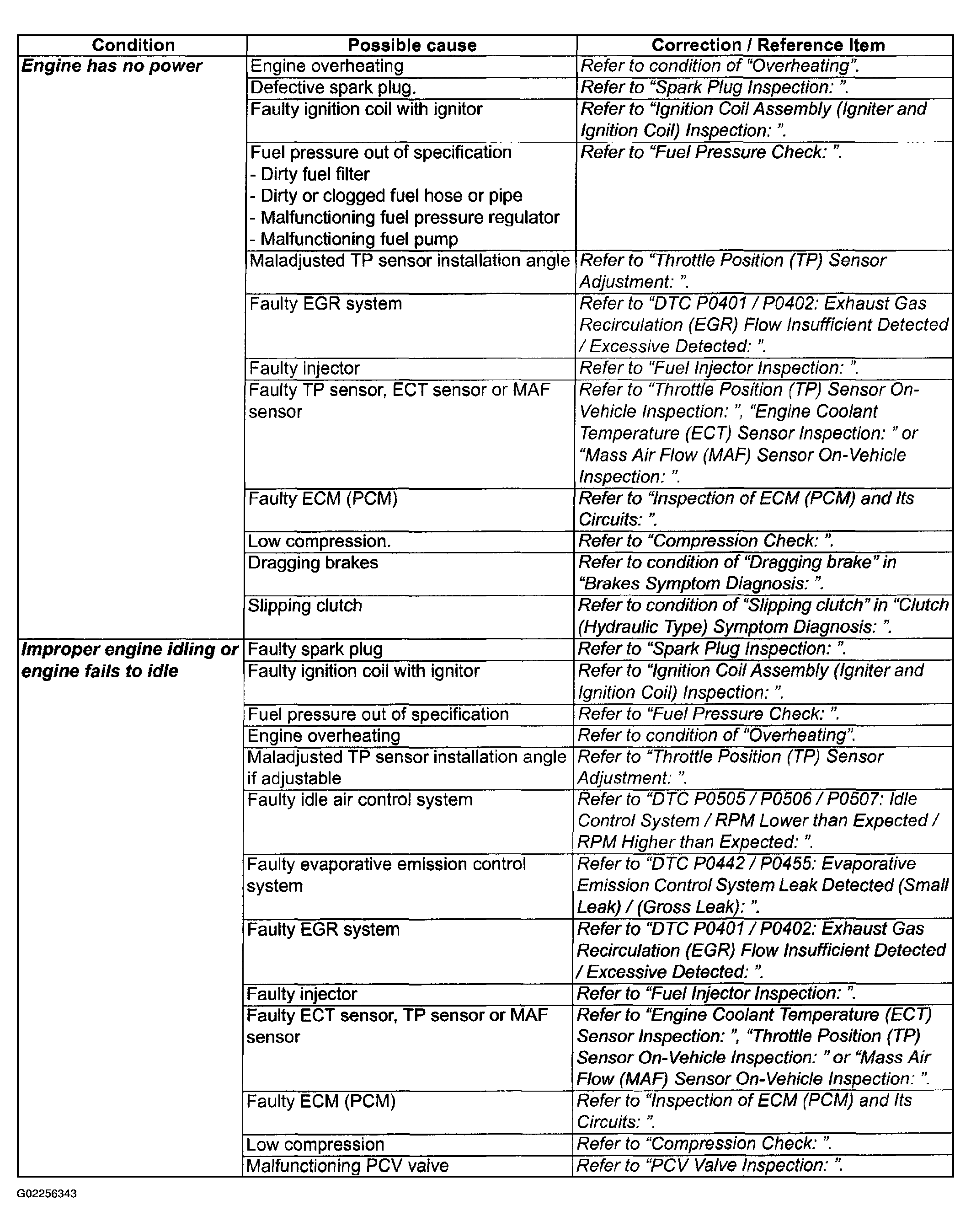

Fig 2: Engine Symptom Troubleshooting Chart (2 Of 5)

G02256343

Courtesy of SUZUKI OF AMERICA CORP.

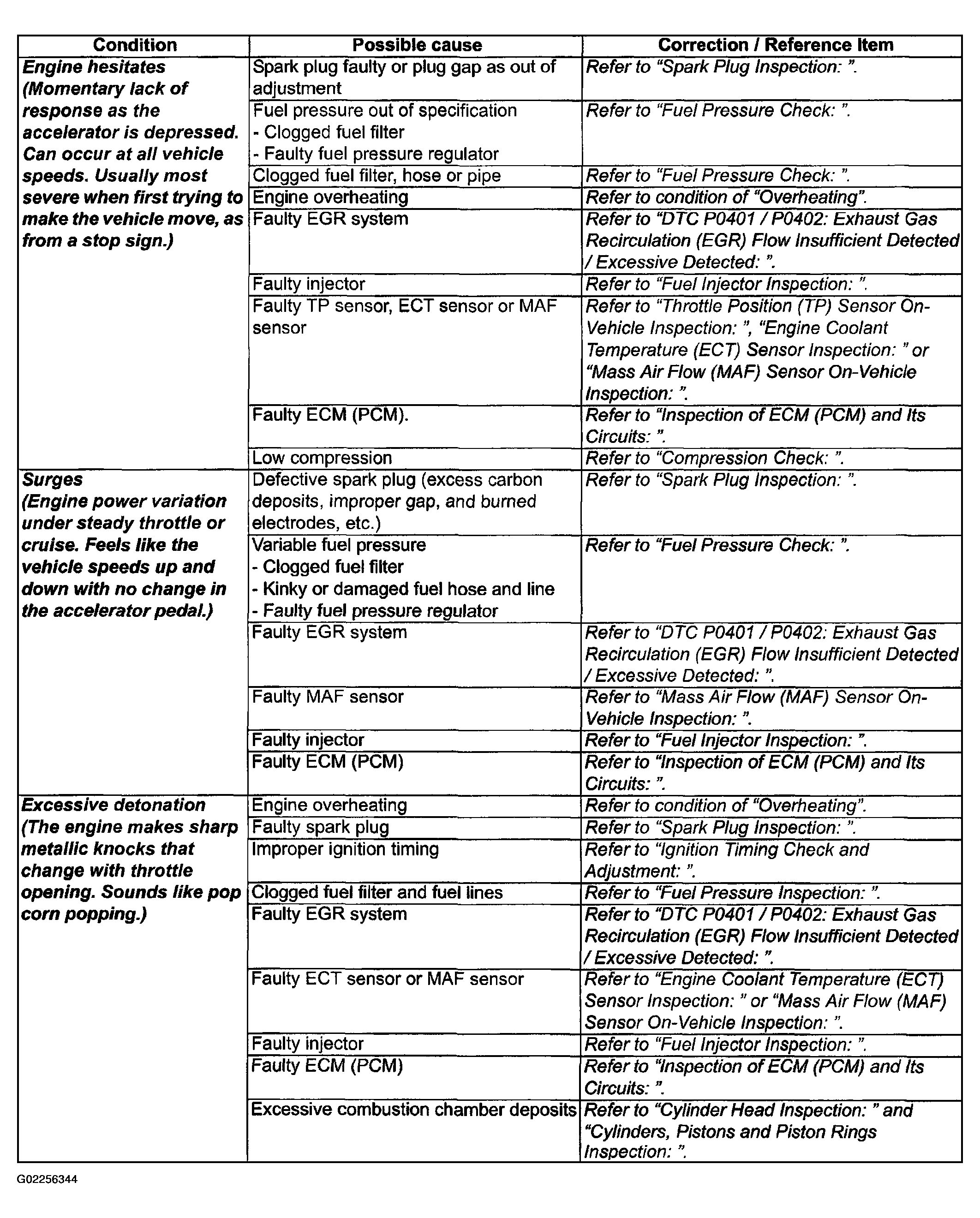

Fig 3: Engine Symptom Troubleshooting Chart (3 Of 5)

G02256344

Courtesy of SUZUKI OF AMERICA CORP.

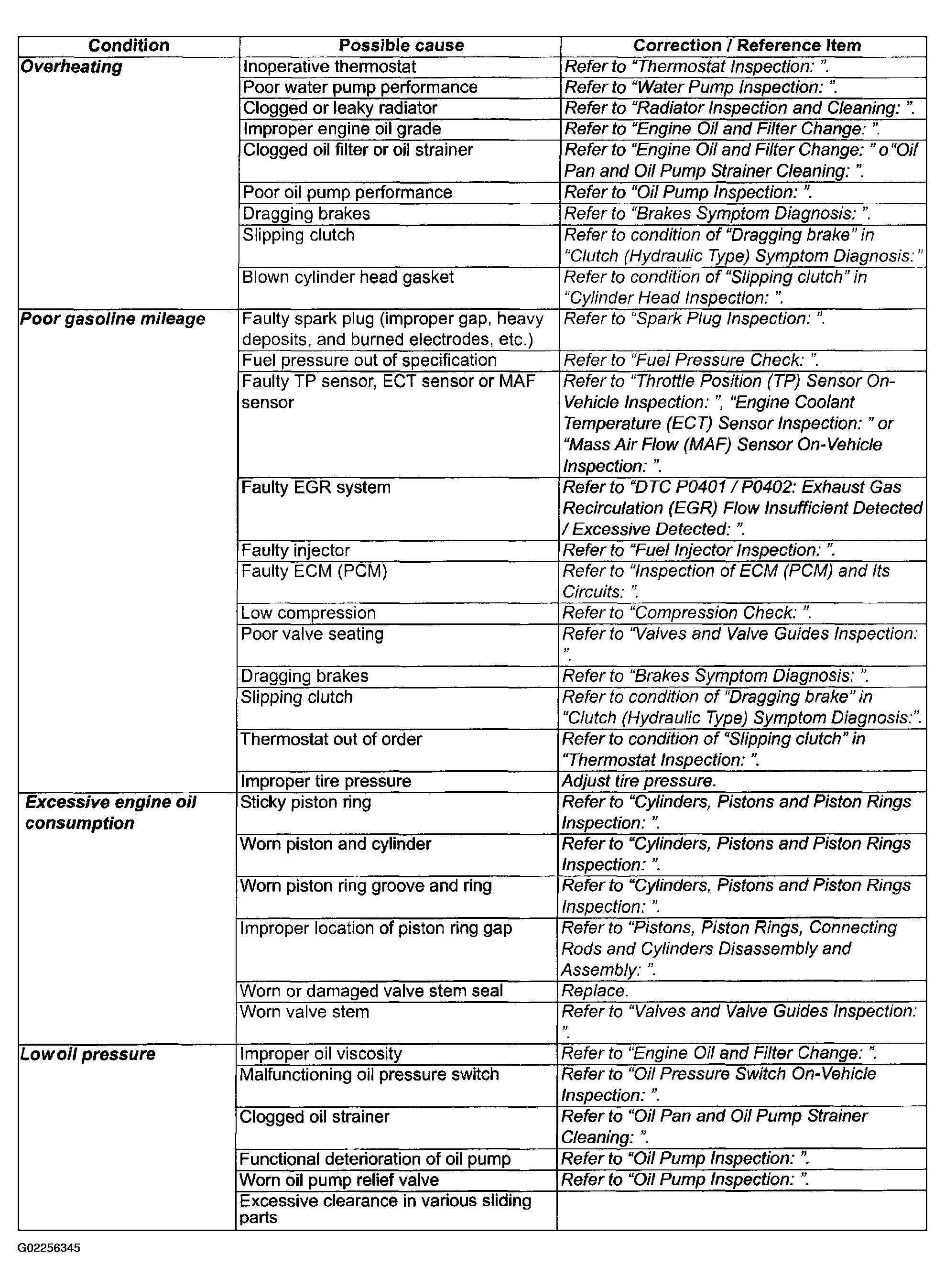

Fig 4: Engine Symptom Troubleshooting Chart (4 Of 5)

G02256345

Courtesy of SUZUKI OF AMERICA CORP.

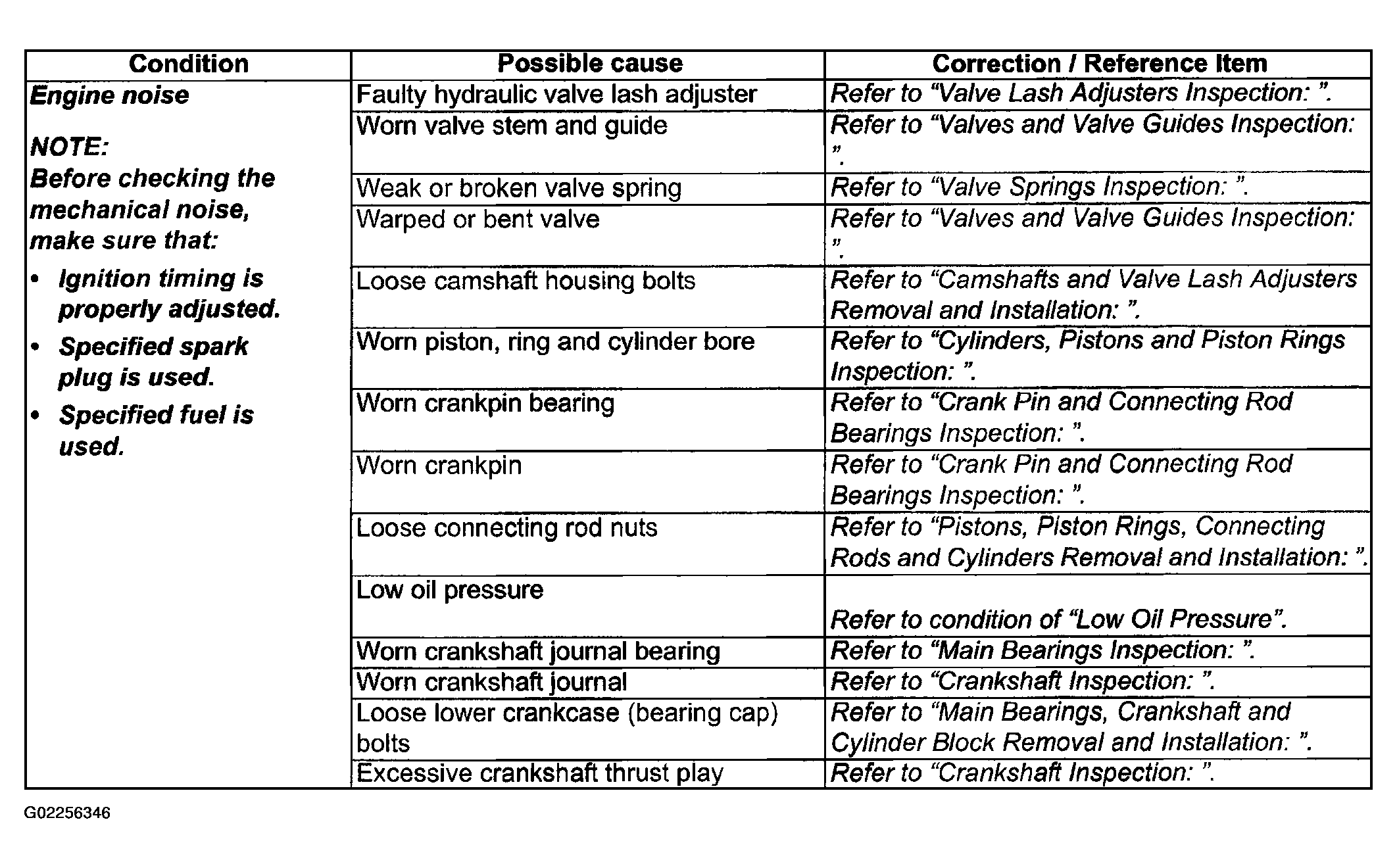

Fig 5: Engine Symptom Troubleshooting Chart (5 Of 5)

G02256346

Courtesy of SUZUKI OF AMERICA CORP.
