Visual Inspection

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Visually check the following parts and systems.

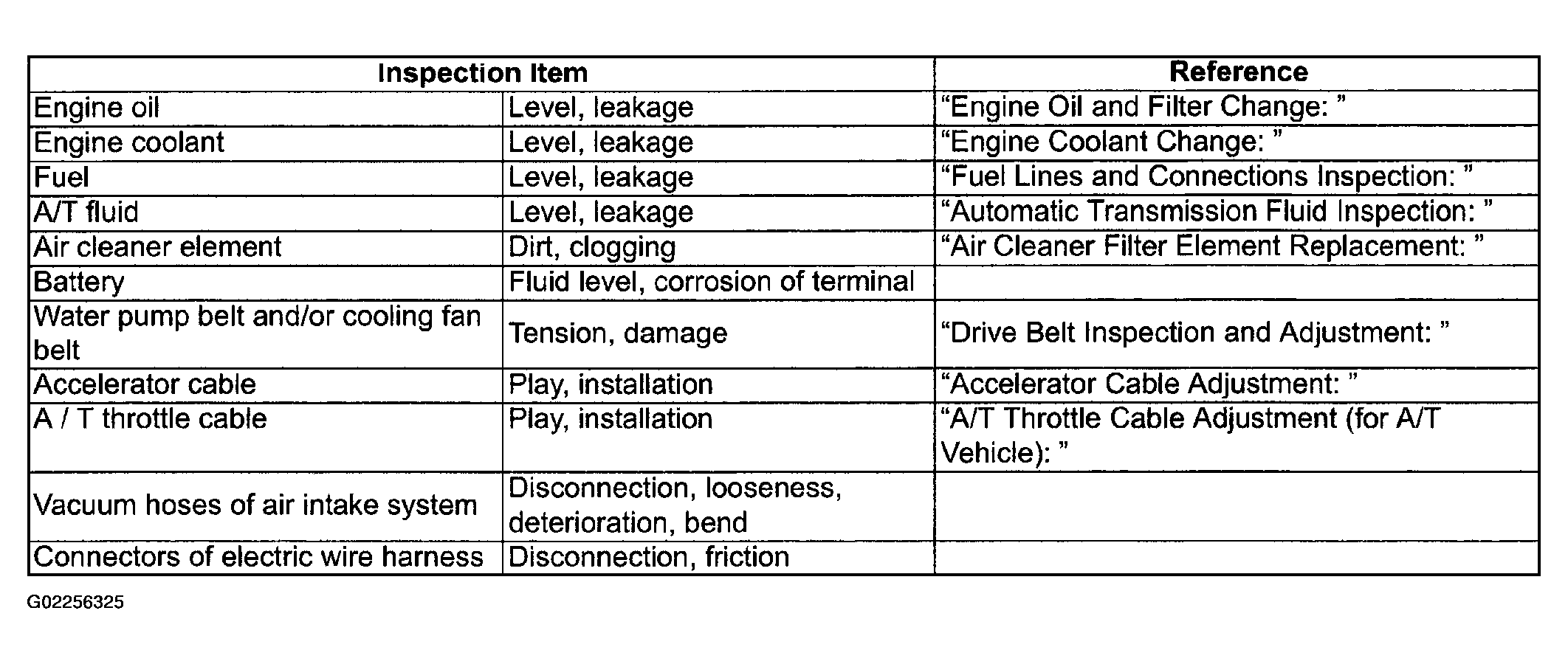

Fig 1: Visual Inspection Chart (1 Of 2)
G02256325Courtesy of SUZUKI OF AMERICA CORP.

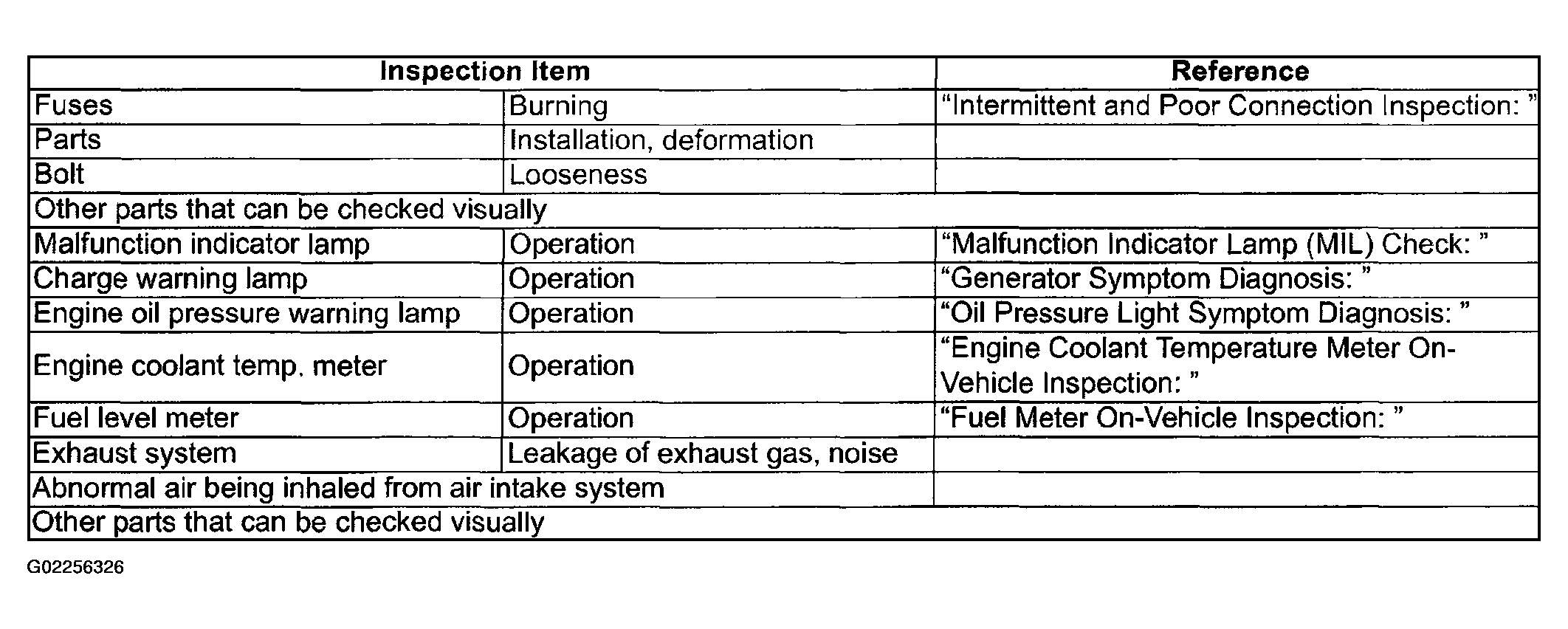

Fig 2: Visual Inspection Chart (2 Of 2)
G02256326Courtesy of SUZUKI OF AMERICA CORP.
