STEP 1. Check the circuit at fan controller connector A-20 (terminal 3).

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect fan controller connector A-20, and measure at the harness side connector.

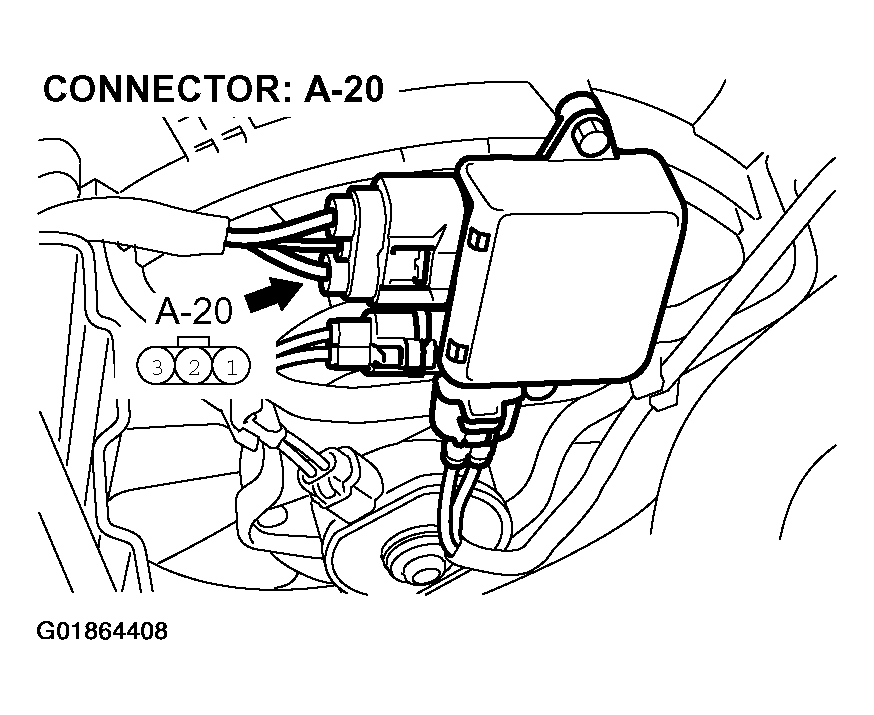

Fig 1: Identifying Connector A-20
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measure the voltage between terminal number 3 and ground.
- When the ignition switch is turned to the "ON" position, voltage should measure battery positive voltage.

Fig 2: Measuring Voltage Between Terminal Number 3 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Is there voltage battery positive voltage when the ignition switch is turned to the "ON" position?

YES : Go to Step 8 .
NO : Go to Step 2.
