Do not disconnect PCM connector C-112.

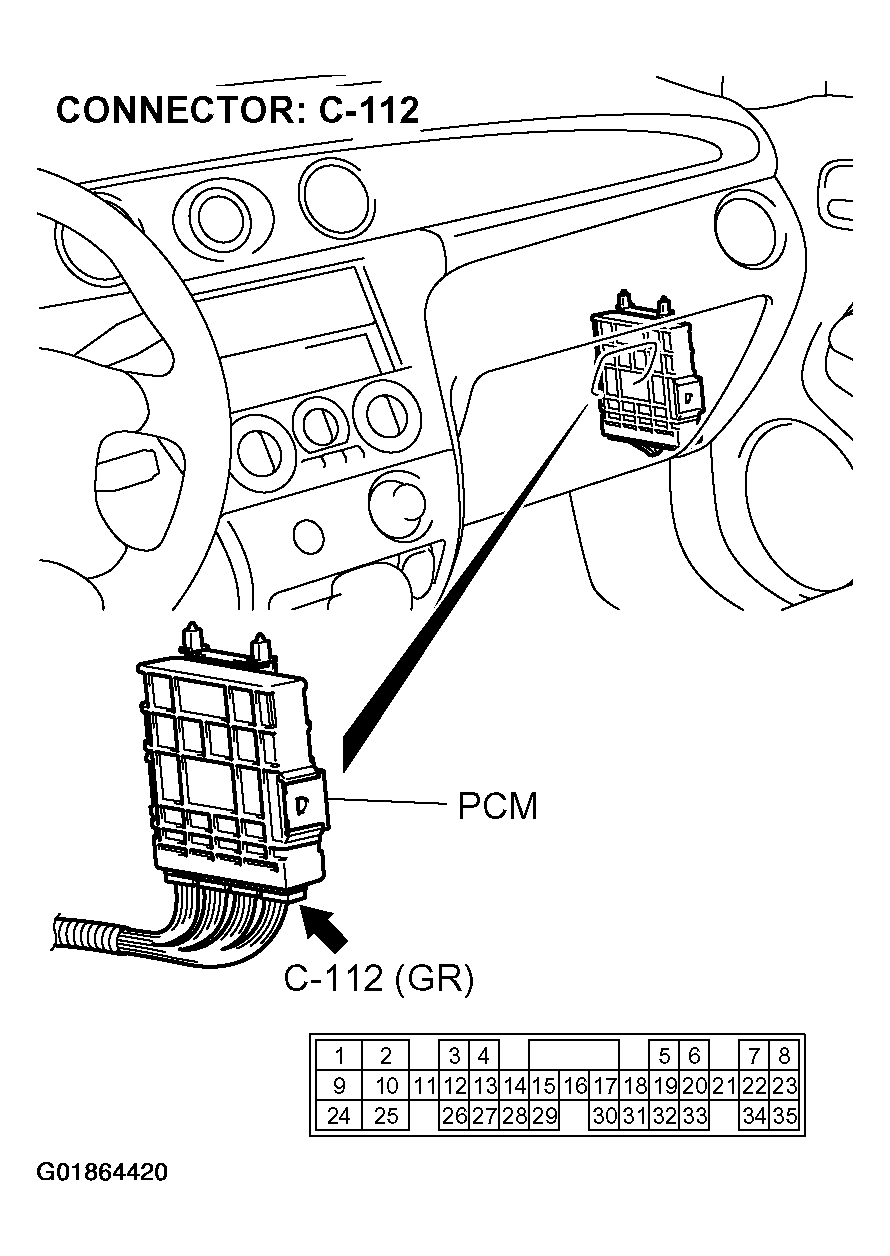

Fig 1: Locating PCM Connector C-112
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Start the engine and allow it to idle.
Measure the voltage between terminal number 18 and ground by backprobing.

Fig 2: Measuring Voltage Between Terminal Number 18 And Ground By Backprobing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Is the voltage 0.7 volt or more when the radiator fan is operating?

YES : Go to Step 12 .
NO : Go to Step 11.
