Magnet Clutch Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove compressor from vehicle. See COMPRESSOR REMOVAL & INSTALLATION .
Fix armature plate (1) with special tool (A) and remove armature plate bolt and washer.
Special tool

(A): 09991-06020

NOTE: Do not reuse armature plate bolt.

Fig 1: Removing Armature Plate Bolt And Washer
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool (B), remove armature plate (1).
Special tool

(B): 09991-06030

Fig 2: Removing Armature Plate
Courtesy of SUZUKI OF AMERICA CORP.
Remove shims from shaft.
Using special tool (C), remove circlip.
Special tool

(C): 09900-06107

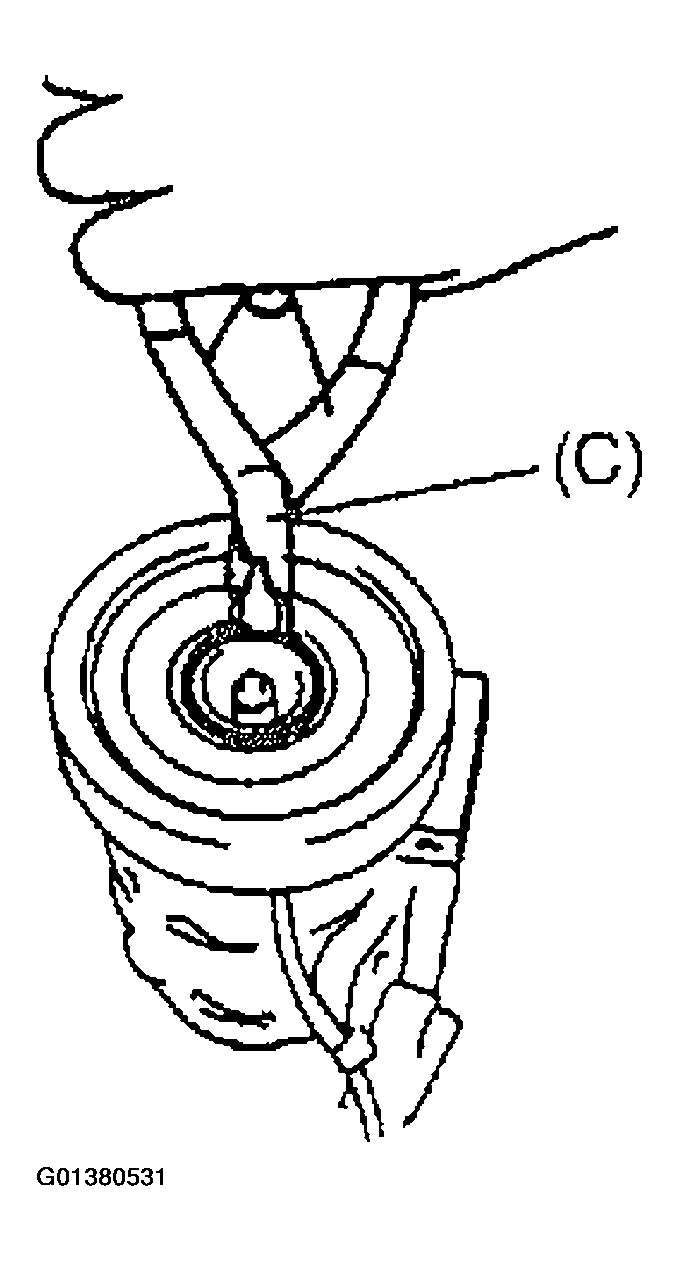

Fig 3: Removing Circlip
Courtesy of SUZUKI OF AMERICA CORP.
Remove magnet clutch lead wire clamp screw, and remove magnet clutch read wire ground terminal.

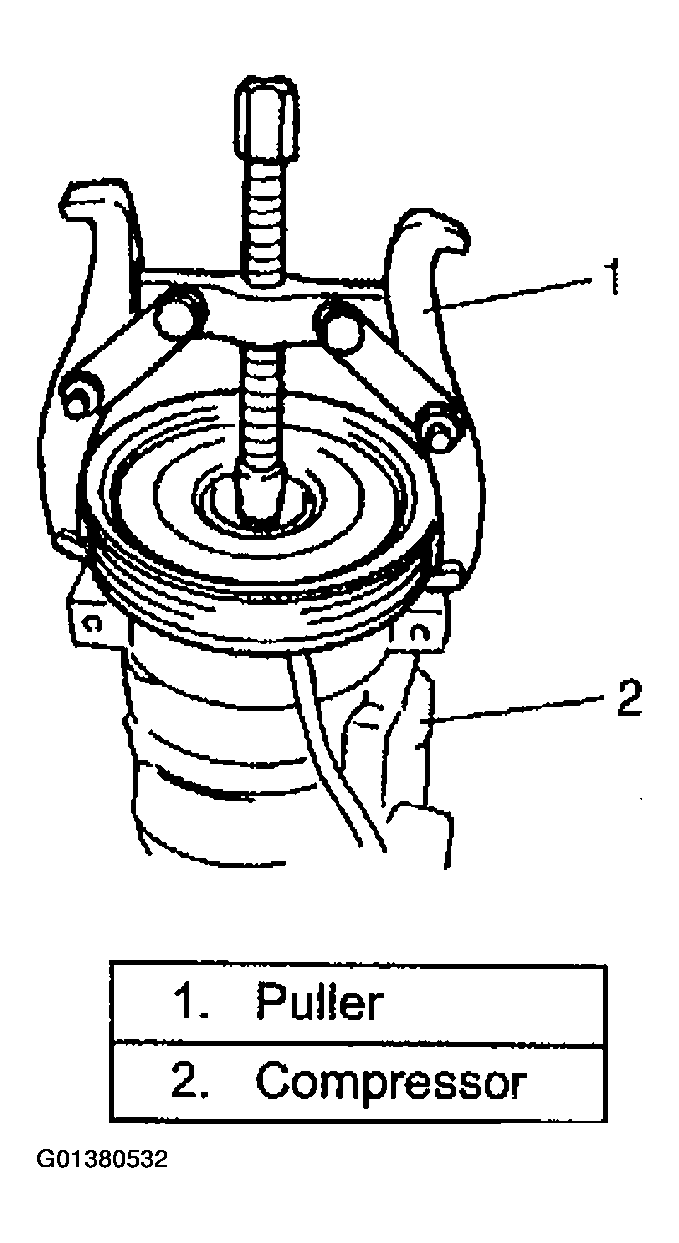

Remove magnet clutch with puller.
NOTE: Be careful not to damage pulley when tapping magnet clutch.

Fig 4: Removing Magnetic Clutch Coil
Courtesy of SUZUKI OF AMERICA CORP.

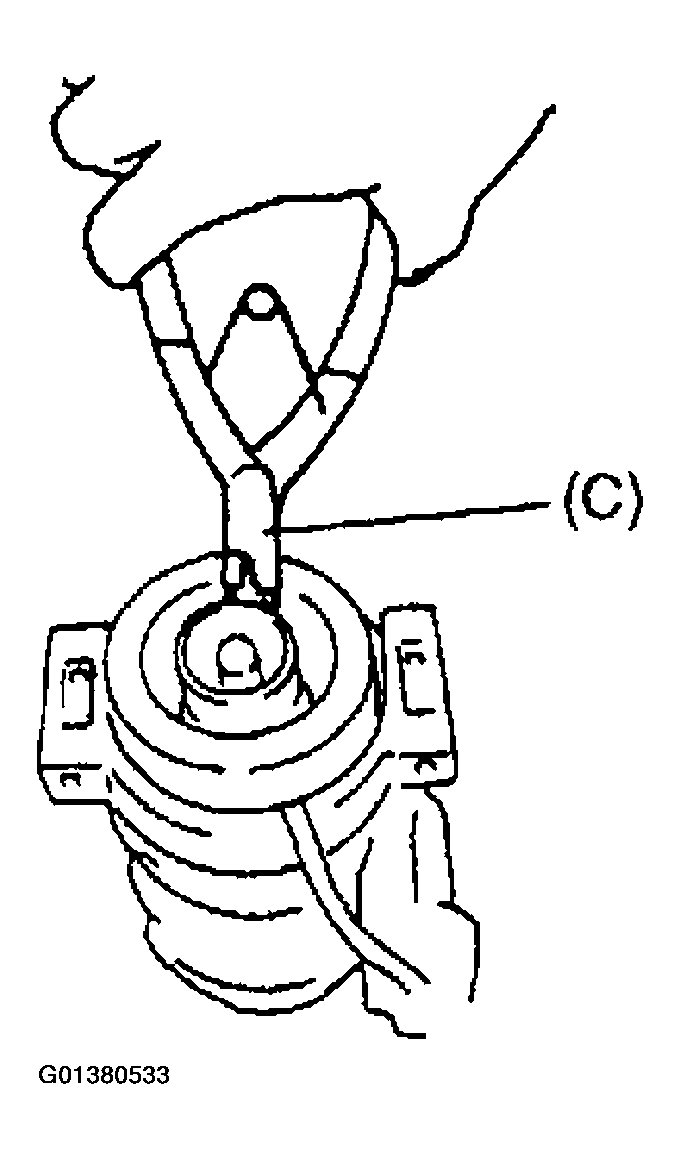

Remove magnet clutch coil.

Special tool

(C): 09900-06107

Fig 5: Removing Magnetic Clutch Coil

Courtesy of SUZUKI OF AMERICA CORP.
