Evaporator (Cooling Unit) Disassembly & Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove filter assembly.
    Fig 1: Removing Filter Assembly
    G01380510Courtesy of SUZUKI OF AMERICA CORP.

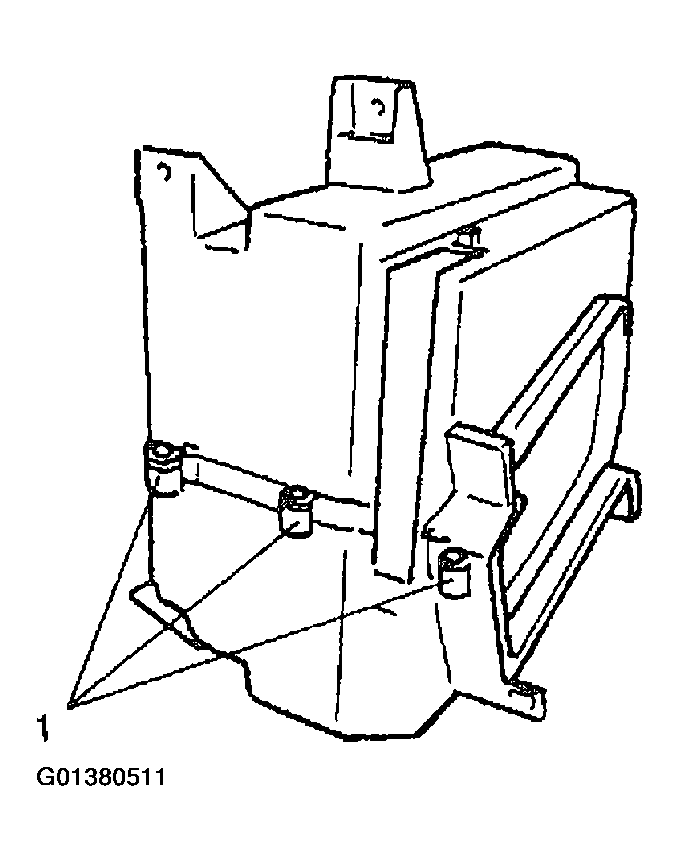

  2. Remove screws (1) to separate evaporator upper and lower cases from each other.
    Fig 2: Separating Evaporator Upper & Lower Cases
    G01380511Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove upper case (1) and remove evaporator (2) from lower case (3).
  4. Remove the following components from evaporator.
