A/C Compressor Relay and Condenser Fan Motor Relay Inspection
WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.

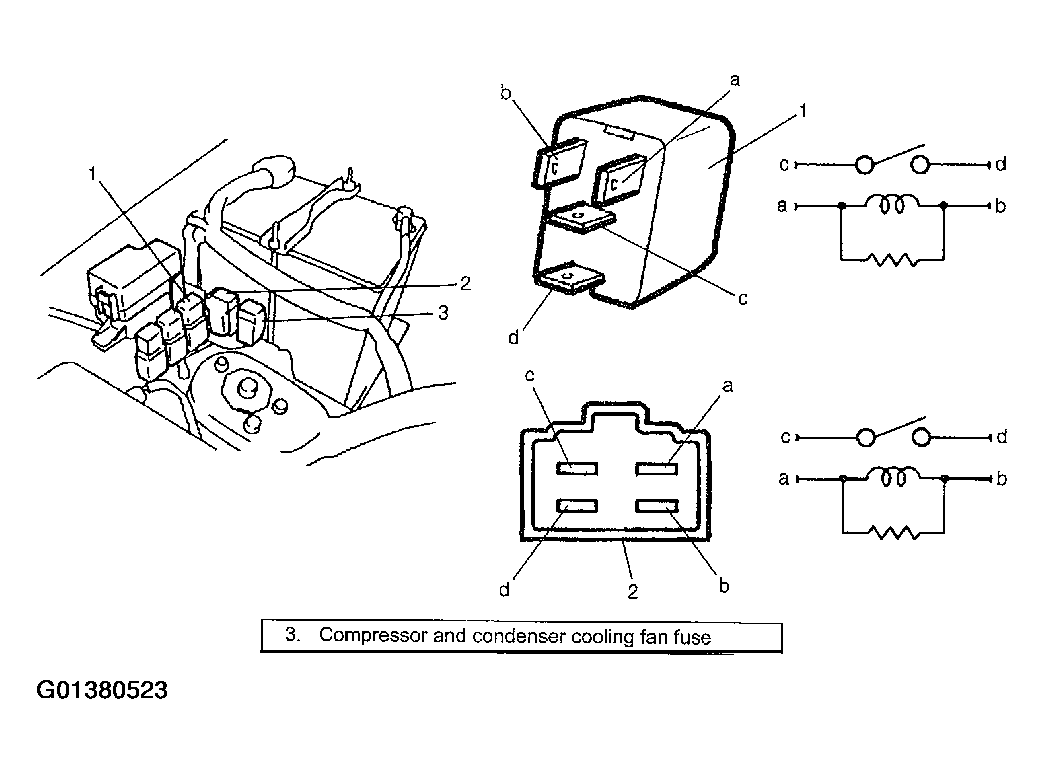

- Remove A/C condenser fan motor relay (2) and/or compressor relay (1) from vehicle.
- Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
- Connect battery positive (+) terminal to terminal "b" or relay.
Connect battery negative (-) terminal to terminal "a" of relay.
Check continuity between terminal "c" and "d".
If there is no continuity when relay is connected to the battery, replace relay.
