Oil Pan, Oil Pump Strainer Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil level gauge.
Raise vehicle and remove both front wheels.
Remove steering gear box (4) from vehicle. See POWER STEERING PUMP REMOVAL & INSTALLATION .
Remove front differential housing (1) with differential (2) from chassis. See FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING .
Drain engine oil by removing drain plug (3).

Fig 1: Identifying Steering Gear Box, Front Differential Housing, Differential & Engine Oil Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Remove transmission stiffener if equipped.
Remove clutch (torque converter) housing lower plate.
Remove oil pan and oil pump strainer (2) from crankcase.

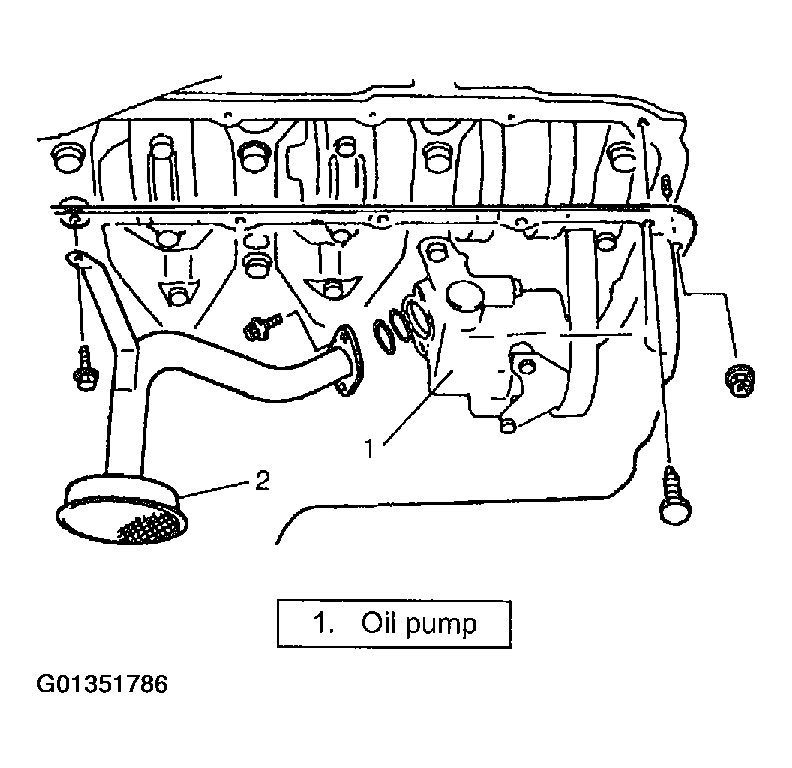

Fig 2: Identifying Oil Pump & Oil Pump Strainer
Courtesy of SUZUKI OF AMERICA CORP.
