Test E: Heater & Ventilation Symptom Diagnosis

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION  and/or WIRING DIAGRAMS  .

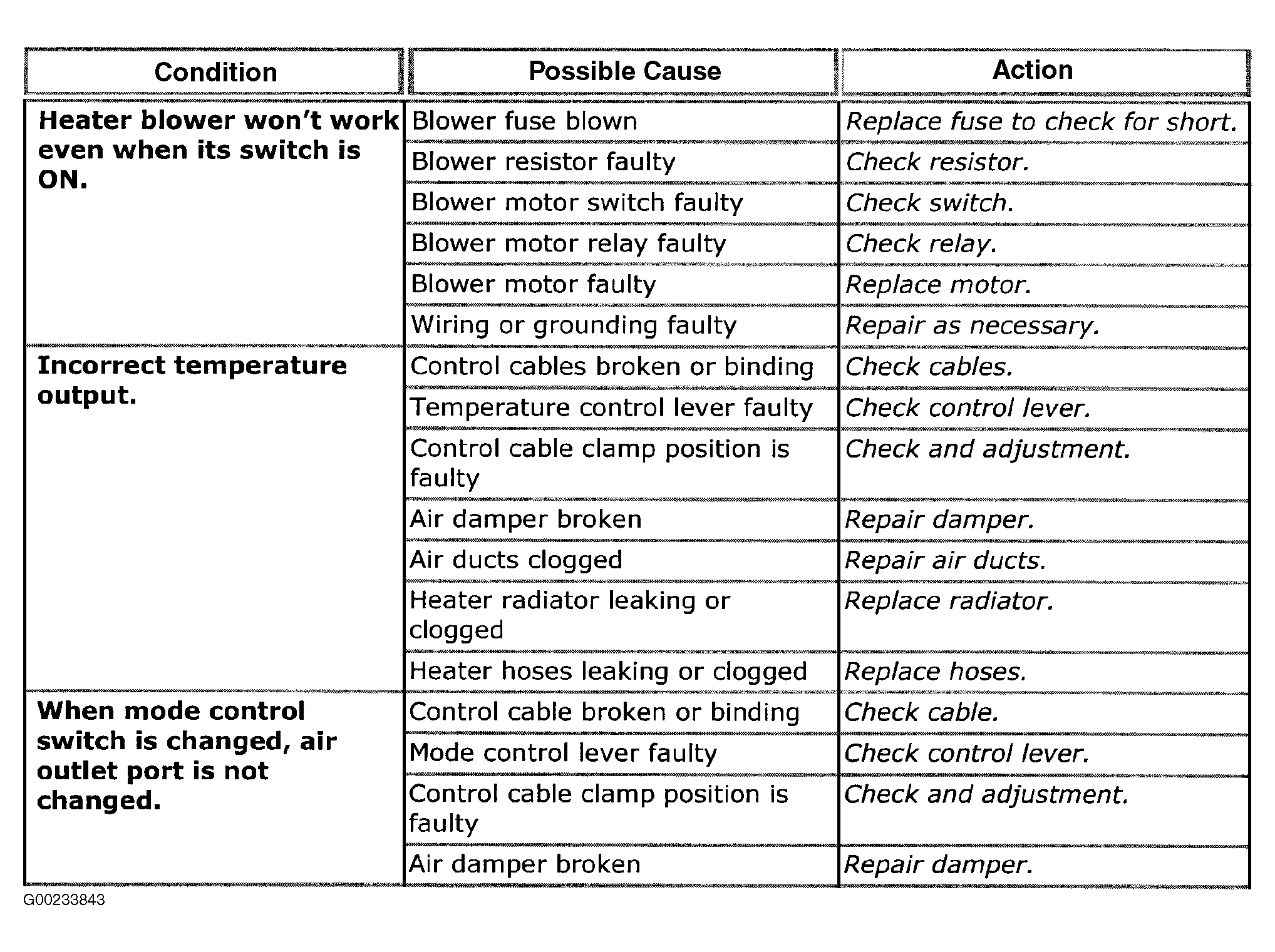

Fig 1: Heater & Ventilation Symptom Diagnosis

Courtesy of SUZUKI OF AMERICA CORP.
