Connector Identification

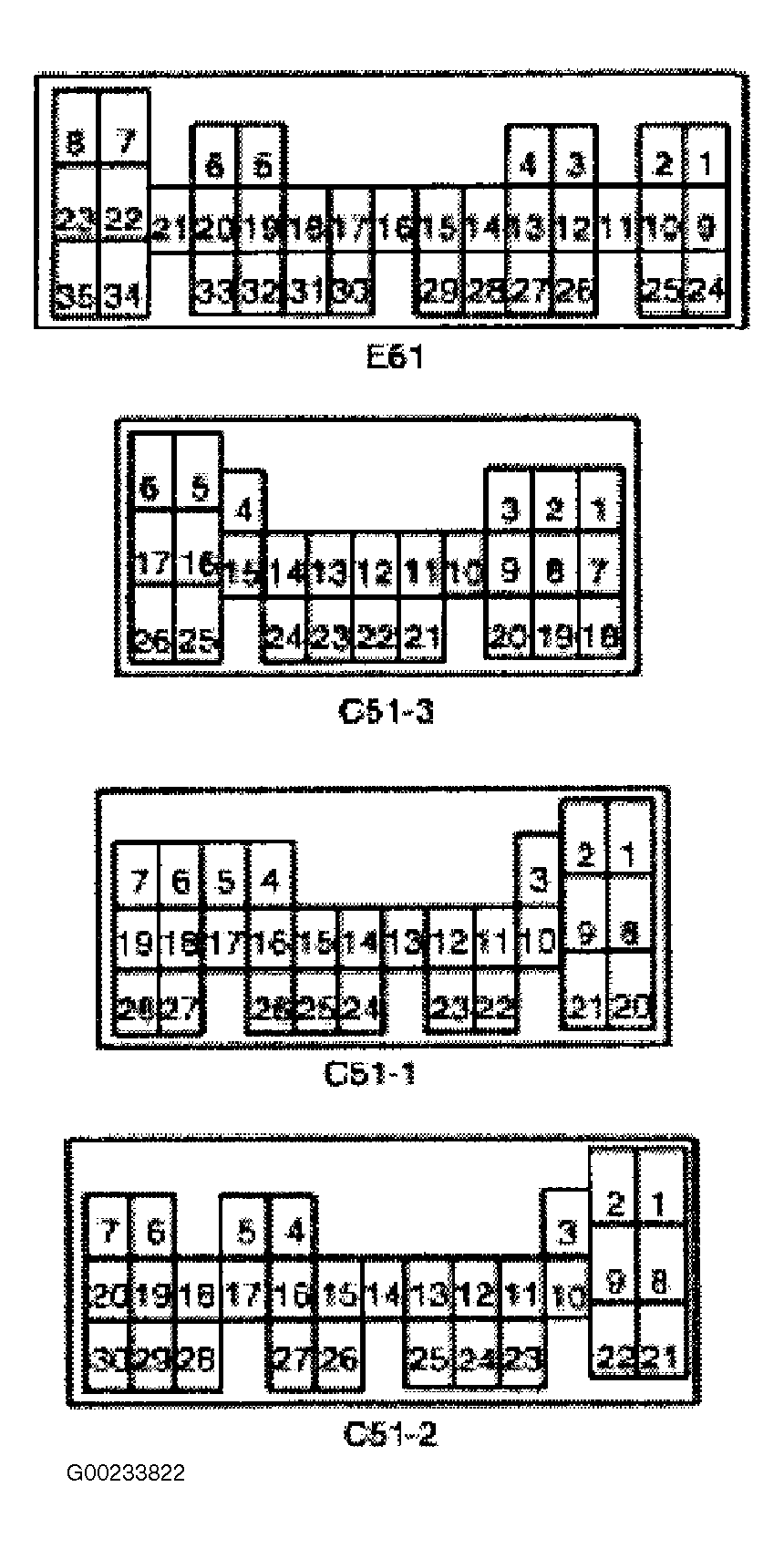

Fig 1: Identifying ECM/PCM Harness Connector Terminals
G00233822Courtesy of SUZUKI OF AMERICA CORP.

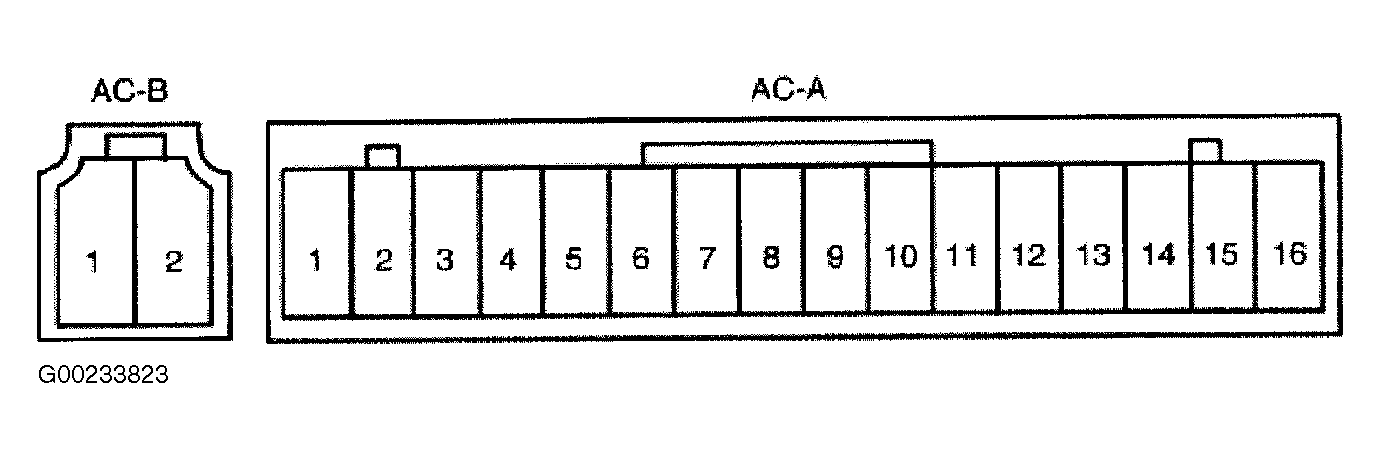

Fig 2: Identifying A/C Controller Harness Connector Terminals
G00233823Courtesy of SUZUKI OF AMERICA CORP.
