Intake Duct No. 2

  1. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

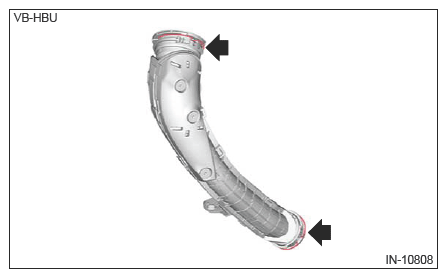

  3. Release the lock of the intake duct No. 2.
    NOTE: Move the both ends (a) of the spring to the cutouts (b) using a flat tip screwdriver wrapped with protection tape to release the lock.
    G14610467Courtesy of SUBARU OF AMERICA, INC.
    G14610468Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolt, and remove the intake duct No. 2.
G14610469Courtesy of SUBARU OF AMERICA, INC.
