Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the under cover front and the under guard front.
    1. Remove the bolts and clips, and remove the under cover front.
    2. Remove the bolts and remove the under guard front.

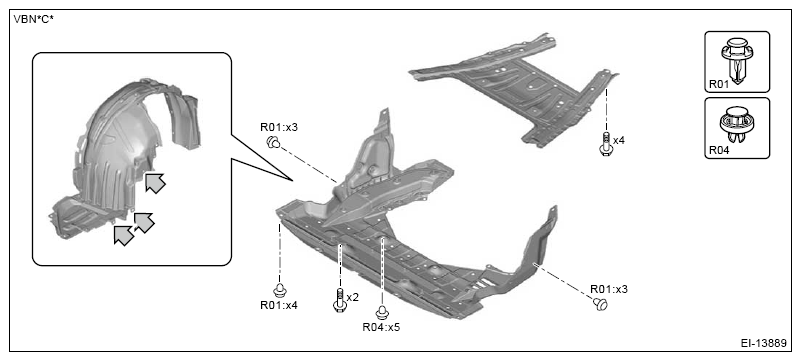

      G16541254Courtesy of SUBARU OF AMERICA, INC.
