Instrument Panel Grille: Front

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER .
  3. Remove the grille front defroster.

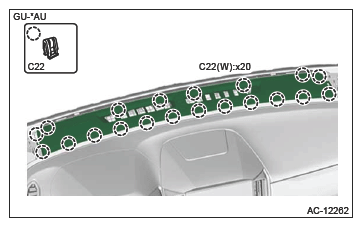

    1. Release the clips.
      G16763962Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.
    3. Remove the grille front defroster.
