Front Speaker: Removal: Tweeter

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

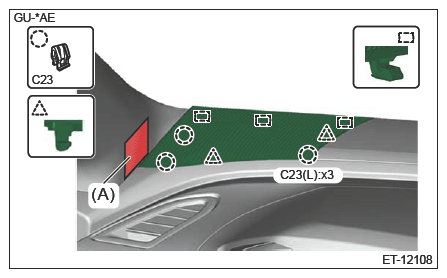

  2. Remove the grille speaker side.
    1. Attach the protective tape (A).
    2. Release the clips.
    3. Release the claws and the hooks.
    4. Remove the grille speaker side.
    G16767668Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the speaker assembly tweeter.
    CAUTION: Do not touch the cone.

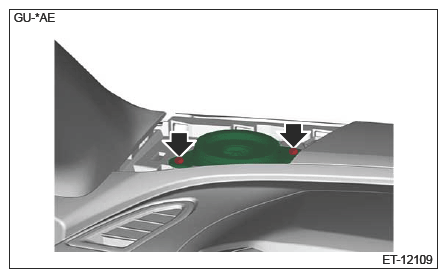

    1. Remove the screws.
      G16767669Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.
    3. Remove the speaker assembly tweeter.
