DTC C1531: BLS Off Stuck

DTC detecting condition:

A fault is detected if stop light switch signal is OFF for a predetermined time or more with the pressure signal of the pressure sensor high.

Trouble symptom:

• VDC does not operate.
• AVH does not function.
• EyeSight does not operate.

Failure detection pattern:

• "Primary" (high-priority diagnosis)

Warning light/indicator light:

The combination of DTC and warning light display may differ from the list depending on vehicle conditions and driving conditions at the time of failure detection.

• ABS warning light -
• VDC warning light & VDC operation indicator light◦
• Electronic parking brake warning light (red) -
• Brake warning light (EBD warning light) (red) -

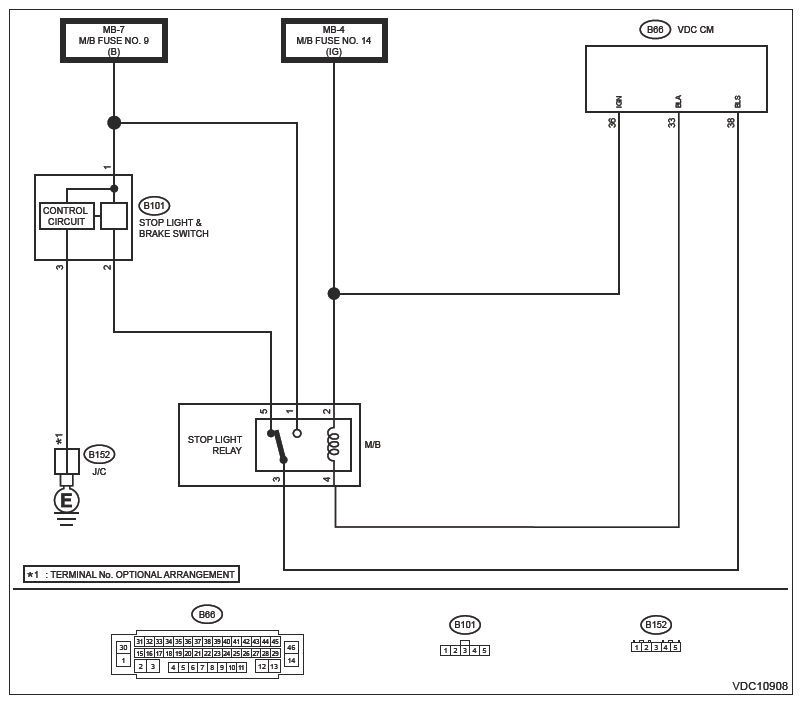

Wiring diagram:

Vehicle dynamics control system Ref. to WIRING SYSTEM>VEHICLE DYNAMICS CONTROL SYSTEM>WIRING DIAGRAM .

Fuse and relay Ref. to WIRING SYSTEM>FUSE AND RELAY>LOCATION .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK INSTALLATION POSITION OF STOP LIGHT SWITCH  .

   Check the installation position of the stop light switch. Ref. to BRAKE>STOP LIGHT SWITCH>INSPECTION>INSPECT THE SPECIFIED POSITION .

   Is the check result OK?

   Yes:  GO TO  2.

   No:  Adjust the installation position of the stop light switch. Ref. to BRAKE>STOP LIGHT SWITCH>ADJUSTMENT .

2. CHECK STOP LIGHT SWITCH UNIT  .

   Perform the inspection of stop light switch unit. Ref. to BRAKE>STOP LIGHT SWITCH>INSPECTION>CHECK OUTPUT .

   Is the check result OK?

   Yes:  GO TO  3.

   No:  Replace the stop light switch. Ref. to BRAKE>STOP LIGHT SWITCH .

3. CHECK STOP LIGHT RELAY  .

   Measure the resistance of stop light relay terminals.

   Terminals

   No. 3 - No. 5:

   Is the resistance less than 1 Ω?

   Yes:  GO TO  4.

   No:  Replace the stop light relay. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>RELAY AND FUSE .

4. CHECK VDCCM & H/U CONNECTOR  .

   Disconnect the connector from the VDCCM & H/U.

   Is there poor contact or damage of the VDCCM & H/U connector?

   Yes:  Repair the VDCCM & H/U connector.

   No:  GO TO  5.

5. CHECK STOP LIGHT SWITCH CIRCUIT (CHECK FOR OPEN CIRCUIT)  .

   Measure the resistance of stop light switch circuit.

   Connector & terminal

   (B66) No. 38 - (M/B) No. 3:

   (B101) No. 2 - (M/B) No. 5:

   (B101) No. 1 - (M/B fuse) No. 9:

   Is the resistance less than 1 Ω?

   Yes:  GO TO  6.

   No:  Repair the stop light switch circuit.

6. CHECK STOP LIGHT SWITCH CIRCUIT  .
   1. Connect all connectors.
   2. Turn the ignition switch to ON.
   3. Measure the voltage between stop light relay and chassis ground.

      Connector & terminal

      (M/B) No. 3 (+) - Chassis ground (-):

   Is the voltage 10 V or more when the stop light switch is ON (when pedal is depressed)?

   Yes:  GO TO  7.

   No:  Repair the stop light switch circuit.

7. CHECK VDCCM & H/U  .
   1. Using the Subaru Select Monitor, perform the clear memory of [Brake Control]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
   2. Execute the inspection mode. Ref. to BRAKE CONTROL (DIAGNOSTICS)>INSPECTION MODE .
   3. Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is the same DTC displayed?

   Yes:  Replace the VDCCM & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .

   No:  GO TO  8.

8. CHECK DETECTION OF OTHER DTCS FOR VDC  .

   Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is any other DTC displayed?

   Yes:  Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

   No:  Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
