Inspect The Specified Position

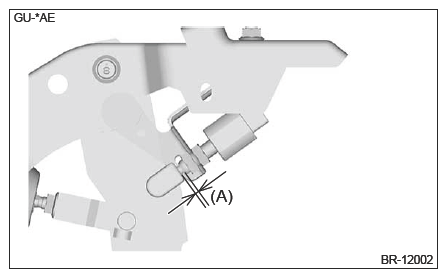

- Check the clearance (A) between the end of the stop light switch assembly and the stopper.CAUTION: Be careful not to rotate the stop light switch assembly.
Specification :
2.1 mm (0.08 in)
- Adjust the position of the stop light switch assembly if the inspection result is not within the standard value. Ref. to BRAKE>STOP LIGHT SWITCH>ADJUSTMENT>CLEARANCE ADJUSTMENT .
- If the stop light switch assembly does not operate properly or it is not secured at the specified position after adjustment, replace the stop light switch assembly.
