Clearance Adjustment

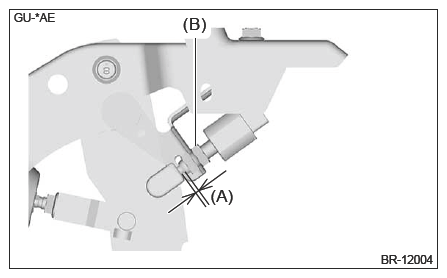

- Loosen the lock nut, and adjust the stop light switch assembly position until the clearance (A) between the threaded end of the stop light switch assembly and stopper becomes 2.1 mm (0.08 in). Then, tighten the lock nut (B) so that the stop light switch assembly position is not displaced.
Tightening torque :
8 N.m (0.8 kgf-m, 5.9 ft-lb)
