Back Panel

NOTE: Components: Ref. to EXTERIOR/INTERIOR TRIM>GENERAL DESCRIPTION>COMPONENT>INSTRUMENT PANEL .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  3. Remove the ornament panel mid passenger. Ref. to EXTERIOR/INTERIOR TRIM>CENTOR CLUSTER>REMOVAL
  4. Remove the ornament assembly passenger.
    1. Release the clips and claws.
    2. Remove the ornament assembly passenger.
      • VIN:] JF1############## [model and] JF2############## [model

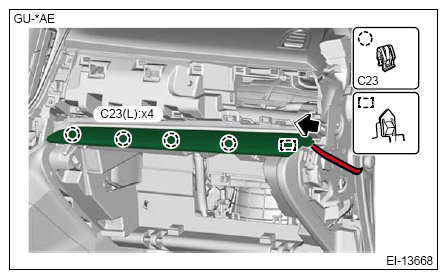

        G16762529Courtesy of SUBARU OF AMERICA, INC.
      • VIN:] 4S4############## [model
    G16762530Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the under cover assembly passenger.
    1. Release the clips.
    2. Remove the under cover assembly passenger.
      • VIN:] JF1############## [model and] JF2############## [model
        G16762531Courtesy of SUBARU OF AMERICA, INC.
      • VIN:] 4S4############## [model

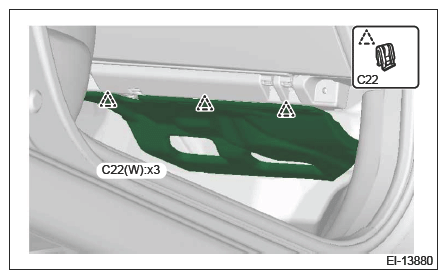

    G16762532Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the light pocket. Ref. to LIGHTING SYSTEM>LED ILLUMINATION LIGHT>REMOVAL>GLOVE BOX LIGHT .
  7. Remove the panel instrument passenger.
    1. Remove the screws.
    2. Release the claw.
    3. Remove the panel instrument passenger.

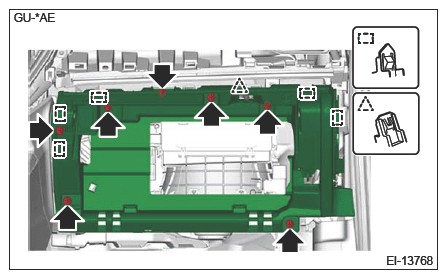

G16762533Courtesy of SUBARU OF AMERICA, INC.
