Center Console: Removal
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
- Remove the screws and release the clips, and remove the cover center side.
NOTE:
Release the clips on the RH side in the same procedure as on the LH side.

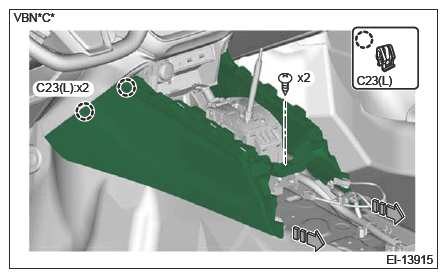

- MT model

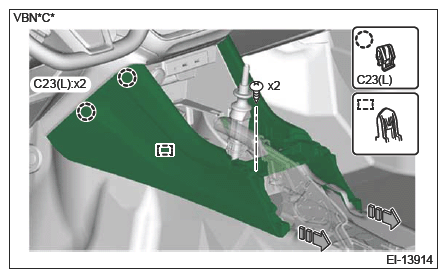

- CVT model
