Console Box: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For models with power seat, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
  2. Release the clips and claws, and then remove the boot assembly parking brake. (MT model)
    G14613009Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the shift knob. (MT model) Ref. to CONTROL SYSTEMS>MT GEAR SHIFT LEVER>REMOVAL .
  4. Release the clips and remove the tray center LWR and the shift boot. (MT model)
    G14613010Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the grip. (CVT model) Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
  6. Remove the cover assembly front.

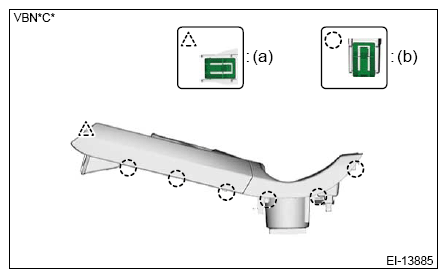

    CAUTION: For CVT model, be careful of the clip direction when removing. The cover assembly front may be damaged.
    G16541346Courtesy of SUBARU OF AMERICA, INC.
    (a) Forward
    (b) Downward
    1. Release the clips.
      • MT model
      G14613011Courtesy of SUBARU OF AMERICA, INC.
      • CVT model
      G14613012Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the cover assembly front.
  7. Remove the console box assembly.
    1. Remove the cap console and bolts.
    2. Remove the screws and release the clip.
    3. Disconnect the connector, and remove the console box assembly.
      • MT model
      G14613013Courtesy of SUBARU OF AMERICA, INC.
      • CVT model
      G14613014Courtesy of SUBARU OF AMERICA, INC.
