Roof Spoiler: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. (Model with power rear gate) Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the trim panel assembly rear gate UPR. (Model without power rear gate) Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  4. Remove the power rear gate touch sensor. (Model with power rear gate) Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE TOUCH SENSOR>REMOVAL .
  5. Remove the drip rear gate and the cover rear gate. (Model without power rear gate) Ref. to EXTERIOR BODY PANELS>REAR GATE>REMOVAL>REAR GATE PANEL .
  6. Remove the spoiler assembly roof CTR.

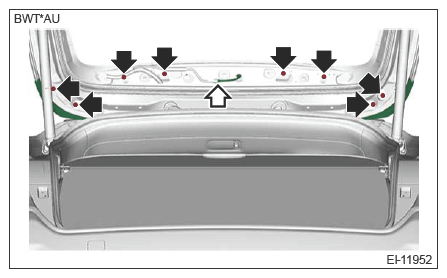

    1. Disconnect the connector of the stop light assembly high-mounted.
    2. Remove the bolt.
      G13625945Courtesy of SUBARU OF AMERICA, INC.

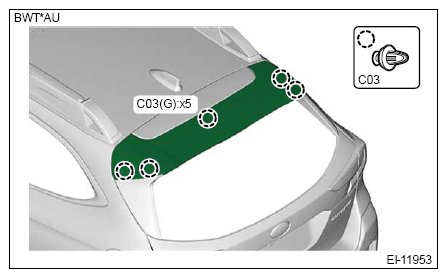

    3. Remove the clips and remove the spoiler assembly roof CTR.
      G13625946Courtesy of SUBARU OF AMERICA, INC.

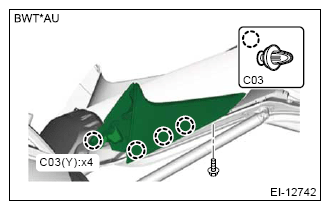

  7. Remove the bolts and clips and remove the spoiler assembly roof side.
    G16387396Courtesy of SUBARU OF AMERICA, INC.
