Rear Gate Garnish: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the power rear gate touch sensor. (Model with power rear gate) Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE TOUCH SENSOR>REMOVAL .

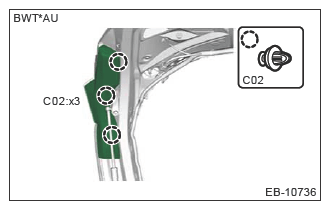

  4. Remove the cover rear gate. (Model without power rear gate)
    G13625937Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the garnish assembly rear gate.
    1. Disconnect the opener switch connector.

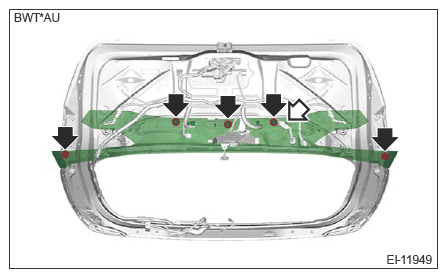

    2. Remove the bolts and nuts.
      G13625938Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the clips and remove the garnish assembly rear gate.
CAUTION: Attach protective tape to both ends of the garnish assembly rear gate. This may cause interference.
NOTE: After all clips are released, remove the garnish assembly rear gate while both ends are flexed to some extent.
G16387387Courtesy of SUBARU OF AMERICA, INC.
