Release Bearing and Lever: Removal

Remove the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL

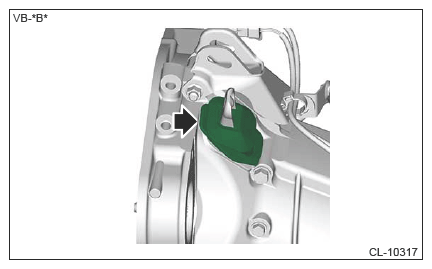

Remove the dust cover.

Courtesy of SUBARU OF AMERICA, INC.
Disengage the lever spring and pivot.

Courtesy of SUBARU OF AMERICA, INC.

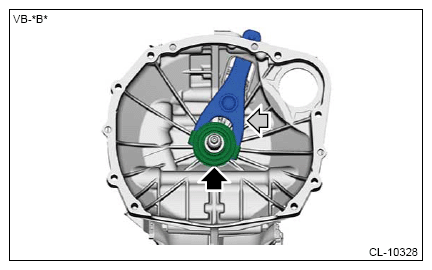

Remove the release lever and release bearing as a unit.

Courtesy of SUBARU OF AMERICA, INC.
Separate the release lever and release bearing.

Courtesy of SUBARU OF AMERICA, INC.

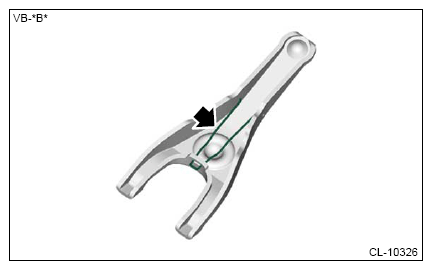

Remove the lever spring from the release lever.

Courtesy of SUBARU OF AMERICA, INC.
Clean the release lever and release bearing.
CAUTION:
Do not wash the release bearing since it is filled with grease.
Clean the input shaft and pivot.

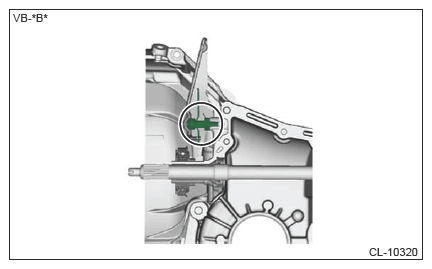

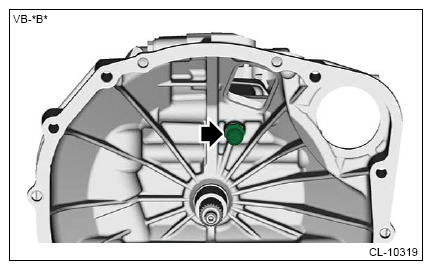

Remove the pivot.

Courtesy of SUBARU OF AMERICA, INC.
