Transfer Clutch: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL

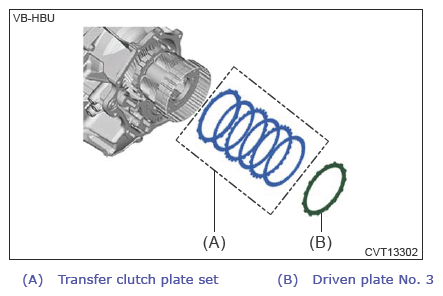

- Remove the driven plate No. 3 and transfer clutch plate set from the center differential carrier.
