Extension Case Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Release the parking brake.
  2. Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL
  3. Remove the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>REMOVAL
  4. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)

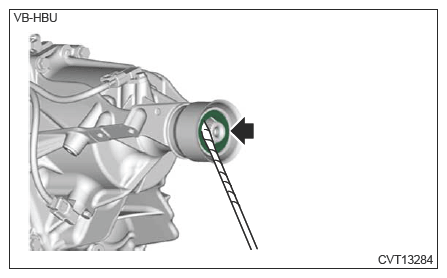

  5. Remove the extension case oil seal using a flat tip screwdriver wrapped with protection tape, etc.
    G14611087Courtesy of SUBARU OF AMERICA, INC.

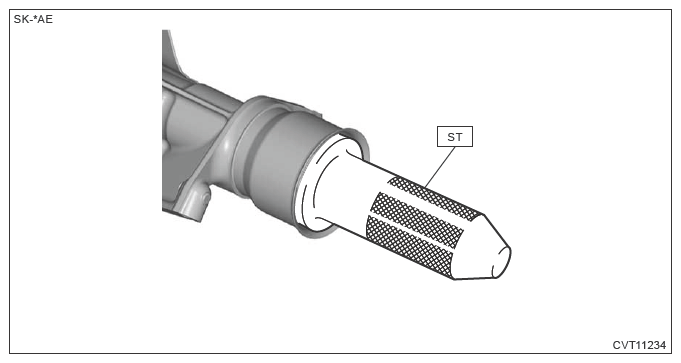

  6. Using the ST, install a new extension case oil seal.
    NOTE:

    Apply CVTF to the oil seal lip and peripheral surface.

    Preparation tool:

    ST: INSTALLER (498057300)

    G13225669Courtesy of SUBARU OF AMERICA, INC.
  7. Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR)
  8. Install the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>INSTALLATION
  9. Release the shift lock and shift the select lever to the "P range". Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION
  10. Apply the parking brake.
  11. Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CVTF>INSPECTION
