Parking Brake Cable: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Release the parking brake.
  4. Remove the flange lock nut.
    G14602349Courtesy of SUBARU OF AMERICA, INC.

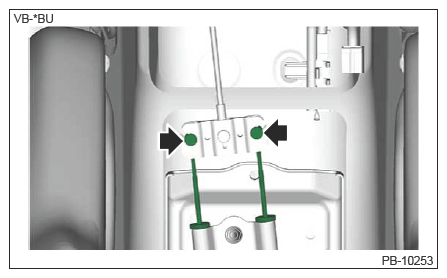

  5. Remove the inner cable end from the equalizer.
    G14602347Courtesy of SUBARU OF AMERICA, INC.

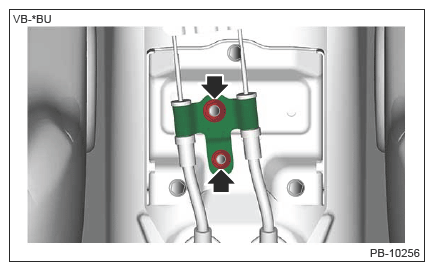

  6. Remove the nut and remove the clamp hand brake.
    G14602351Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  8. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL TANK PROTECTOR>REMOVAL .
  9. Remove the rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .
  10. Remove the cable assembly hand brake from the parking lever. Ref. to PARKING BRAKE>PARKING BRAKE ASSEMBLY (REAR DISC BRAKE)>REMOVAL .
  11. Remove the cable assembly hand brake.

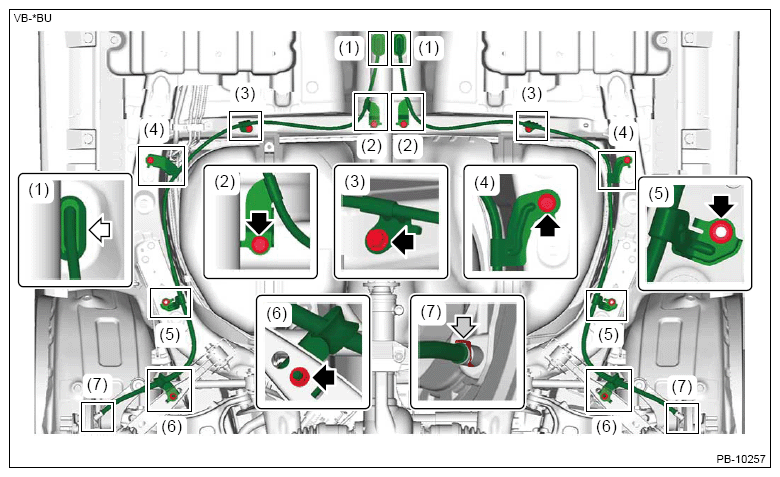

    1. Remove the grommet.
    2. Remove the bolt and detach the clamp.
    3. Remove the bolt and detach the clamp.
    4. Remove the bolt and detach the clamp.
    5. Remove the nut and detach the clamp.
    6. Remove the nut and detach the clamp.
    7. Remove the clamp hand brake cable.
    G14602352Courtesy of SUBARU OF AMERICA, INC.
