Parking Brake Harness

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

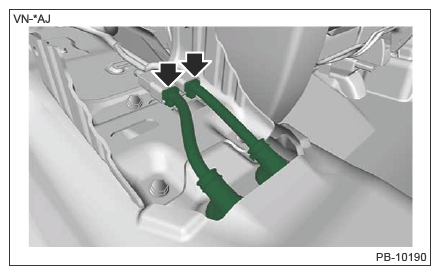

  3. Disconnect the connector.
    G14602375Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  5. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL TANK PROTECTOR>REMOVAL .
  6. Remove the rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .
  7. Remove the adapter cord EPB.

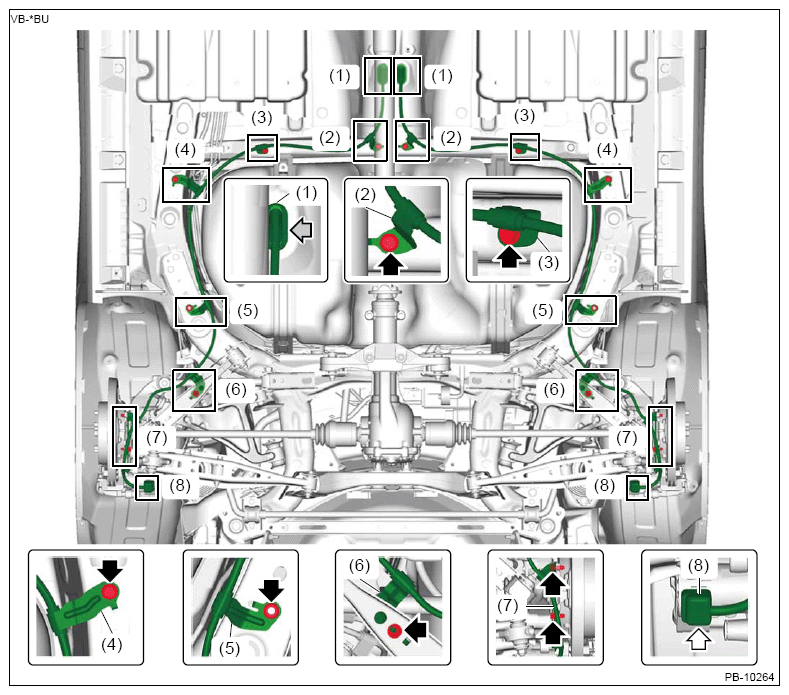

    1. Remove the grommet.
    2. Remove the bolt and detach the clamp.
    3. Remove the bolt and detach the clamp.
    4. Remove the bolt and detach the clamp.
    5. Remove the nut and detach the clamp.
    6. Remove the nut and detach the clamp.
    7. Remove the bolt and detach the clamp.
    8. Disconnect the connector.
      G14602376Courtesy of SUBARU OF AMERICA, INC.
