Back Panel

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL
  3. Remove the cover assembly instrument panel side RH and the ornament assembly passenger. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL
  4. Remove the panel instrument passenger.
    1. Remove the glove box light LED, and disconnect the connector.

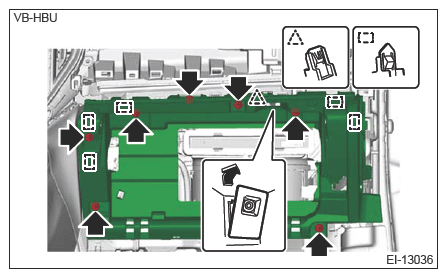

    2. Remove the screws and release the claws, remove the panel instrument passenger.
      G14612999Courtesy of SUBARU OF AMERICA, INC.
