Center Cluster: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the clips, and remove the cover assembly instrument panel side RH.
    NOTE:
    • Use a plastic remover.
    • If removing is difficult, remove the weather strip and remove it from the gap using a plastic remover.

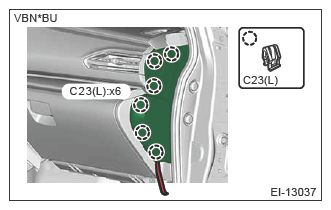

    G14613001Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ornament panel mid passenger.
    1. Pull the ornament panel mid passenger toward you and release the clips.

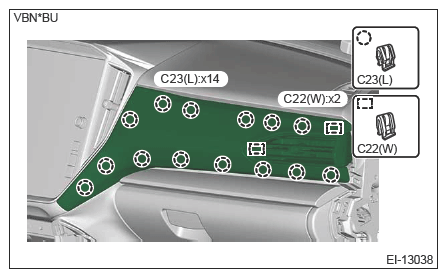

      G14613002Courtesy of SUBARU OF AMERICA, INC.
    2. Move the part in the direction of arrow to release the hook.
    3. Remove the ornament panel mid passenger.

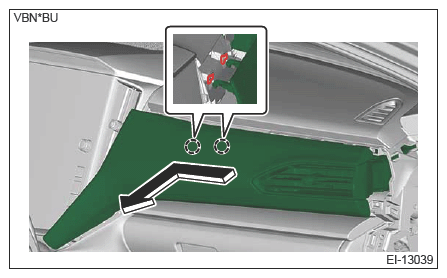

      G14613003Courtesy of SUBARU OF AMERICA, INC.
  4. Release the clips and claws, and remove the ornament assembly passenger.

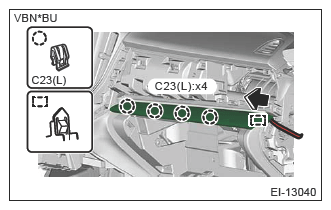

    G14613004Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the panel assembly center.
    1. Release the screws and clips and pull out the panel assembly center.

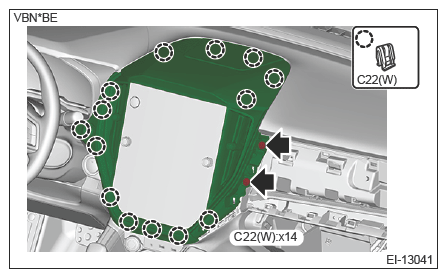

      G14613005Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the panel assembly center.
  6. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL
