Trip Reset Switch
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
- Remove the cover assembly instrument panel side RH and the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL

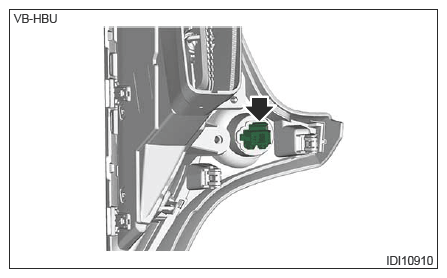

- Release the claws, and remove the switch assembly meter.
