When The SUBARU Select Monitor Is Not Available

Remove the pad COMPL. Ref. to BRAKE>REAR BRAKE PAD>REMOVAL>ELECTRONIC PARKING BRAKE MODEL .
Remove the bolt on the lower side of the caliper body, loosen the upper side bolt, and then raise and hold the caliper body.

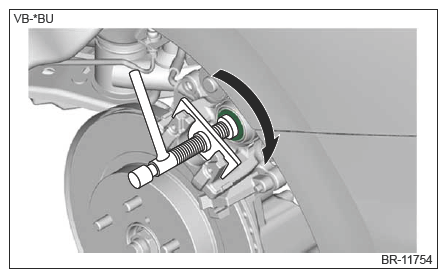

Press back the piston disc brake with a disc brake piston tool.
Preparation tool:

Disc brake piston tool: KTC disc parking tool rotor (E•F) ABX104 or equivalent

Disc brake piston tool: OTC brake caliper tool adapter No. 7317A or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the pad COMPL. Ref. to BRAKE>REAR BRAKE PAD>INSTALLATION>ELECTRONIC PARKING BRAKE MODEL .
Install the caliper body.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
