Electronic Parking Brake Model

  1. Release the parking brake.
  2. Execute the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  5. Remove the pad COMPL.

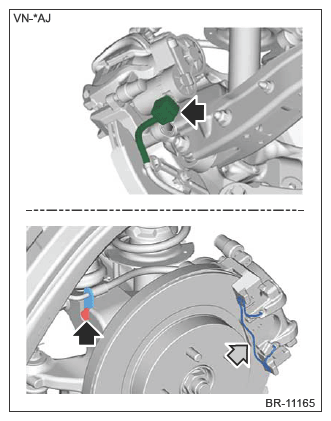

    1. Disconnect the connector.
    2. Remove the pad clip.
    3. Remove the bolts and then remove the brake hose bracket.
      G14602187Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the cap (a).
    5. Using a hexagon wrench, remove the guide pin rear brake (b) and remove the caliper body.
    6. Remove the pad COMPL.
    G14602188Courtesy of SUBARU OF AMERICA, INC.
