Bumper Beam

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE
  3. Remove the energy absorber foam front.

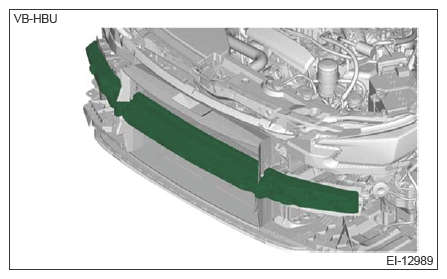

    G14612930Courtesy of SUBARU OF AMERICA, INC.
  4. Release the clips, and remove the air guide UPR.

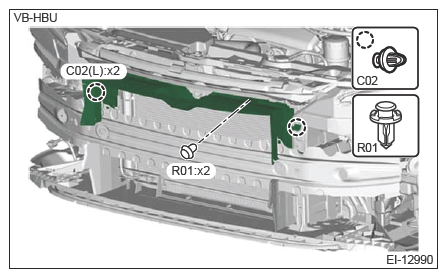

    G14612931Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air guide LWR.
    1. Release the claws and clips and remove the ambient sensor.
    2. Release the clips, and remove the air guide LWR.

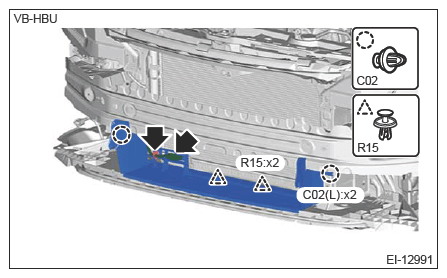

      G14612932Courtesy of SUBARU OF AMERICA, INC.

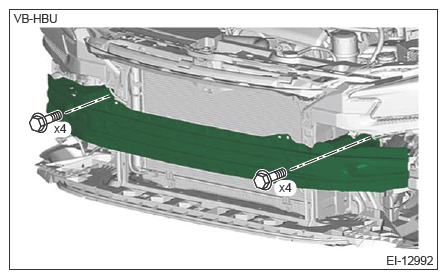

  6. Remove the bolts, and remove the beam COMPL front.
    G14612933Courtesy of SUBARU OF AMERICA, INC.
