Belt Assembly Front Inn

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front seats. Ref. to SEATS>FRONT SEAT>REMOVAL .
  3. Remove the belt assembly front INN.

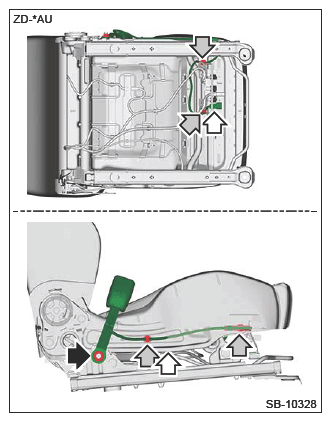

    1. Unfasten the J-fastener.
    2. Remove the seat belt harness clips.
    3. Remove the nut, and then remove the belt assembly front INN.
NOTE: For details on harness routing behind the seat, refer to "SEATS" section. Ref. to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR & HARNESS .
G16526770Courtesy of SUBARU OF AMERICA, INC.
