Connector & Harness
Route the harness and cable by referring to the following.
- Driver's seat

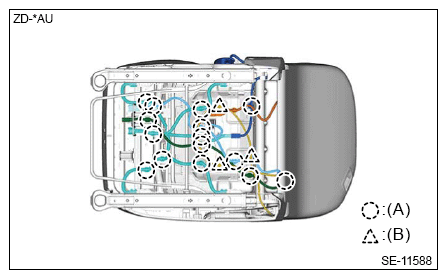

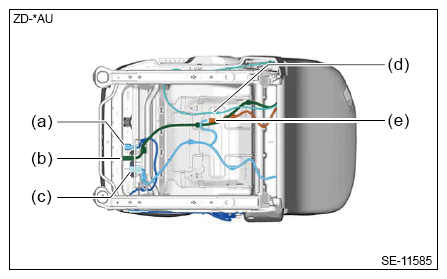

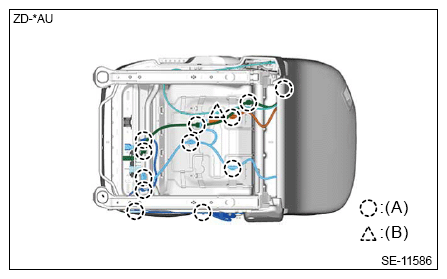

(a) Seat belt connector (b) Side airbag connector (c) Seat heater connector (d) Reclining cable (e) Backrest heater connector (A) Harness clamp (B) Cable clamp - Passenger's seat

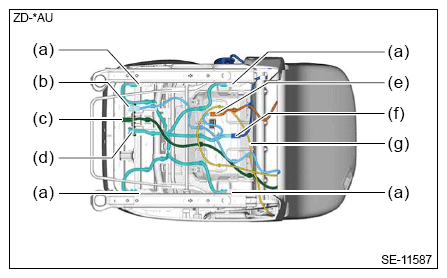

| (a) | Load sensor |
| (b) | Seat heater connector |
| (c) | Side airbag connector |
| (d) | Load sensor connector |
| (e) | Backrest heater connector |
| (f) | Seat belt connector |
| (g) | Reclining cable |
| (A) | Harness clamp |
| (B) | Cable clamp |
