Passenger's Airbag Module: Removal
CAUTION:
- Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Do not allow harness and connectors to interfere or get tangled up with other parts.
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the instrument panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL ASSEMBLY>REMOVAL .

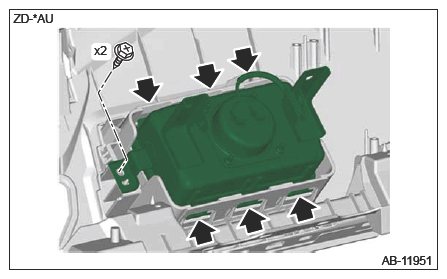

- Remove the tapping screws and release the claws, and remove the passenger's airbag module.
| Meaning of pictograms indicated on the label | |
| (a) | Flammable explosive substance encapsulated parts; be careful of handling. |
| (b) | Indicates that this part is an airbag module. |
| (c) | Before handling, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM" in the service information. |
| For the disposal procedures of the airbag modules, refer to "Airbag Module Disposal". | |
| (d) | Do not disassemble the airbag module. |
