A Pillar Trim

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover side sill front Rr and the cover side sill front Ft. Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
  3. Remove the weather strip body side flange front. Ref. to EXTERIOR BODY PANELS>WEATHER STRIP>REPLACEMENT .
  4. Remove the trim panel assembly A pillar.

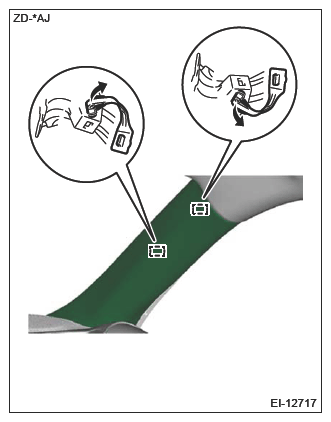

    1. Pull the trim panel assembly A pillar towards the center of the vehicle.
    2. Release the hook at the end of the tether clip, and remove the trim panel assembly A pillar.
CAUTION:
  • Do not use any tool when releasing the hook at the end of the trim panel assembly A pillar.
  • Be careful not to damage the trim panel assembly A pillar surface and curtain airbag module.
G16527324Courtesy of SUBARU OF AMERICA, INC.
