Trip Reset Switch
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.
- Remove the cover LWR driver INN and cover LWR driver OUT. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
- Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
- Remove the grille ventilation side LH. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>SIDE GRILLE .
- Remove the visor assembly LWR. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .

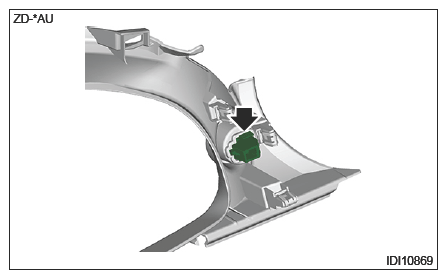

- Release the claws, and remove the switch assembly meter.
