Light Control Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER .
  3. Remove the grille front defroster.

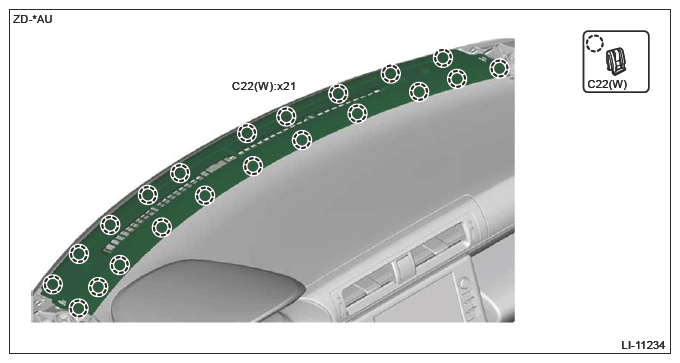

    1. Release the clips.
      G16526813Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the grille front defroster.

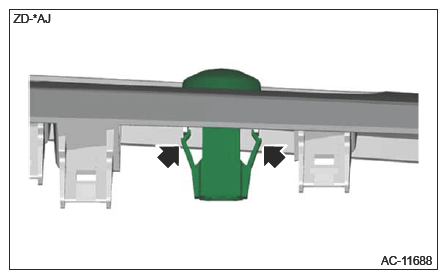

  4. Disconnect the claws and then remove the auto light sensor.
G16526814Courtesy of SUBARU OF AMERICA, INC.
