Front Speaker: Removal: Tweeter

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille speaker side.

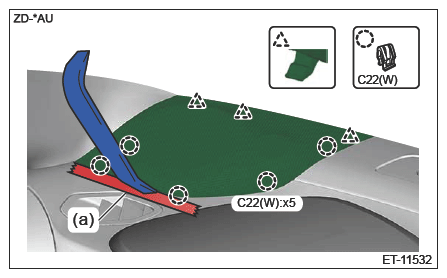

    1. Attach the protective tape (a).
    2. Release the clips and remove the hooks using a plastic remover or similar tool.
      G16526943Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector of the speaker assembly tweeter, and remove the grille speaker side.

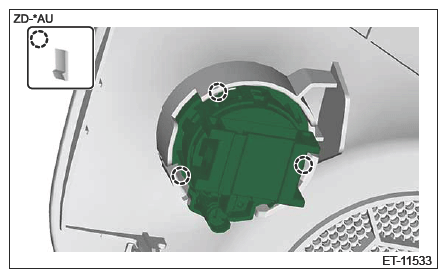

  3. Release the claws, and remove the speaker assembly tweeter from the grille speaker side.
CAUTION: Do not touch the cone.
G16526944Courtesy of SUBARU OF AMERICA, INC.
