Radiator Main Fan and Fan Motor: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the reservoir tank. Refer to COOLING(W/O STI)>RESERVOIR TANK>REMOVAL .

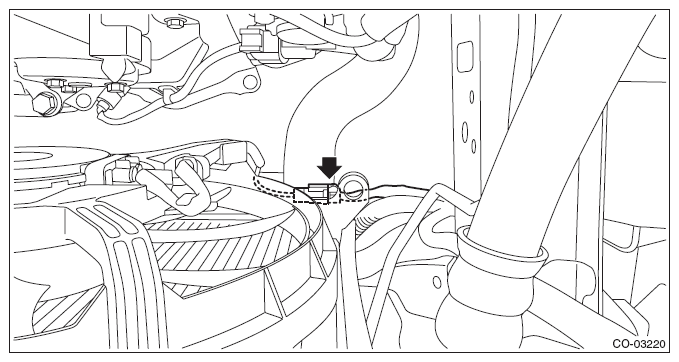

  3. Disconnect the connector from the main fan motor.
    G09480817Courtesy of SUBARU OF AMERICA, INC.

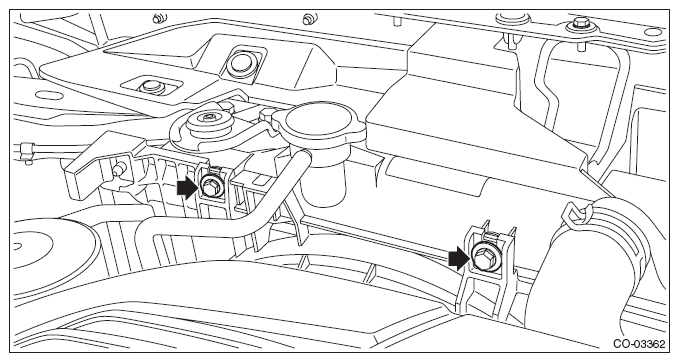

  4. Remove the bolts which secure the radiator main fan motor assembly onto the radiator.
    G10267256Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the radiator main fan motor assembly from the vehicle.
