Home >> Subaru >> 2021 >> WRX Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System (2.0L) >> Reservoir Tank >> Removal

Reservoir Tank: Removal

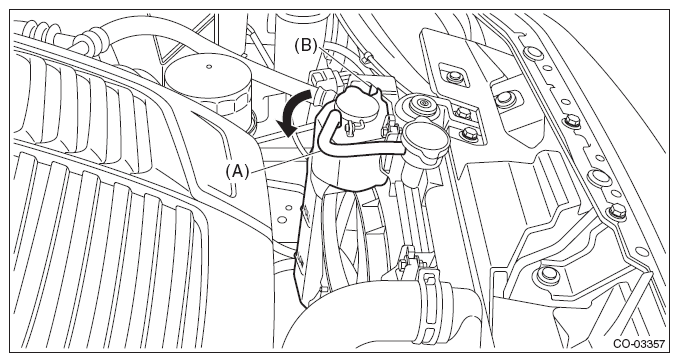

  1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
  2. Pull out the reservoir tank in the direction of the arrow while pushing the claw (B).
G10267267Courtesy of SUBARU OF AMERICA, INC.
