Console Box: Disassembly

  1. Remove the socket assembly. Ref. to ENTERTAINMENT AND MONITORING>ACCESSORY POWER SUPPLY SOCKET>REMOVAL>REAR .

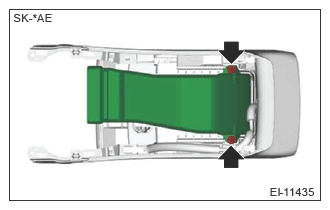

  2. Remove the screws and remove the duct console rear.
    G13227097Courtesy of SUBARU OF AMERICA, INC.

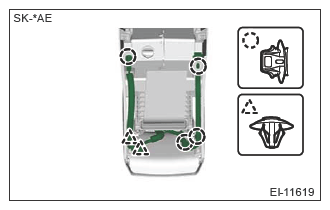

  3. Remove the clips of the cord assembly power and the cord assembly rear seat heater. (Model with AUX unit rear and model with rear seat heater)
    G13227098Courtesy of SUBARU OF AMERICA, INC.

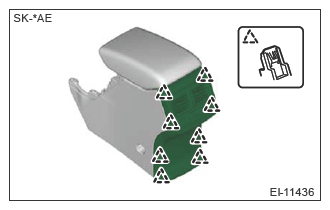

  4. Release the claws and remove the cover rear console assembly.
    G13227099Courtesy of SUBARU OF AMERICA, INC.

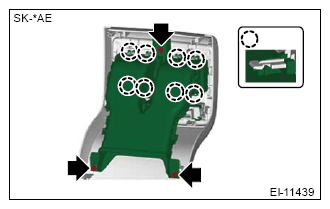

  5. Remove the screws and release the claws, then remove the grille assembly console rear.
    G13227100Courtesy of SUBARU OF AMERICA, INC.

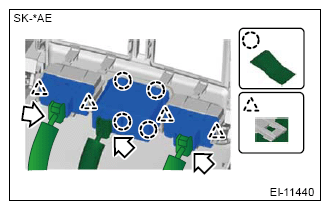

  6. Release the claws and remove the AUX unit rear and the switch assembly rear seat heater.
    G13227101Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the screws and remove the lid assembly console.
    G13227102Courtesy of SUBARU OF AMERICA, INC.

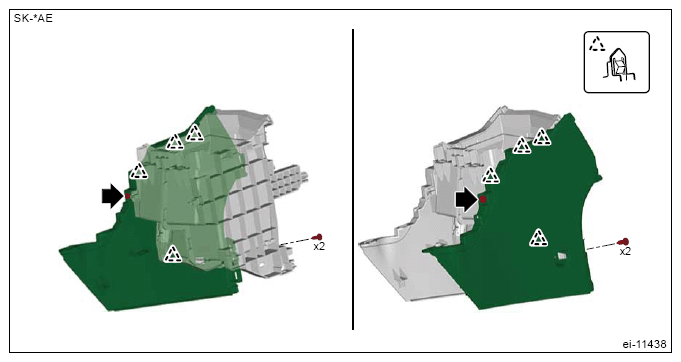

  8. Remove the screws and release the claws, then remove the console box LWR.
G13227103Courtesy of SUBARU OF AMERICA, INC.
